Leica DISTO D5 Package
Leica DISTO D5 Package
Leica DISTO™ D5 Laser Distance Meter with Digital Pointfinder with 4-fold zoom, Li-Ion Technology, Automatic end-piece, Smart Horizontal Mode, 200m range, +/-1mm accuracy, tilt sensor.
The Leica DISTO D5 is a versatile tool for outdoor distance measurements. It has a digital Pointfinder for easy aiming, even in sunlight and over long distances. The large IPS display ensures clear target and measurement results. Measurement can be triggered by gestures for maximum accuracy. It has Smart Horizontal Mode, height tracking, profile or angle measurements to solve measurement situations quickly and efficiently. The data can be transferred to the DISTO Plan app or Excel for error-free digital workflow.

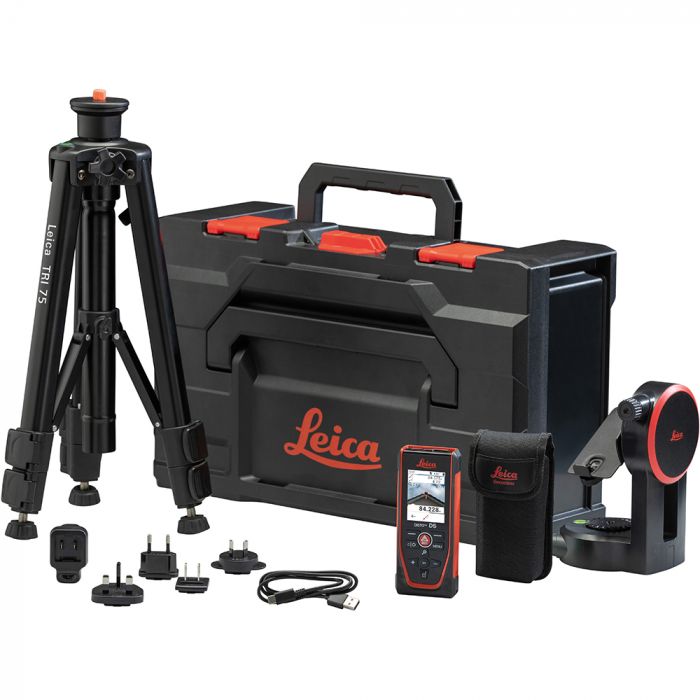

Package includes:
DISTO D5, pouch, charger with cable, hand loop,FTA 360 adapter, TRI 75 tripod, Quickstart guide, Warranty card, Safety
Manual, Calibration Certificate Silver.
![We accept Visa, Mastercard and PayPal.](https://www.sccssurvey.co.uk/static/version1688053295/frontend/SccsSurvey/default/en_GB/images/payment-icons.png)
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
The Leica DISTO™ D5 is a highly effective tool for distance measurements in outdoor areas. Its digital Pointfinder, high functionality, and compatibility with the Leica DISTO™ Plan app make it quick and efficient for every measuring situation. The results are easily documented to support a target-oriented and error-free digital workflow.
Even when the laser dot is no longer visible, the target is clearly seen on the crystal-clear display thanks to the high-quality digital Point-finder. This ensures accurate aiming and thus precise results, even in very bright environments and over long distances.
Precise measurements are guaranteed through the non-contact triggering of the measurement with gestures, avoiding any movement of the device, especially on small targets or at long distances. The Leica tripod adapter can increase measurement accuracy, as the fine drives enable very precise aiming.
The Leica DISTO™ D5 offers various measurement functions, such as Smart Horizontal Mode for measuring over obstacles, height tracking, profile or angle measurements, ensuring that every measurement task can be solved.
In keyboard mode, the Leica DISTO™ D5 can be connected to a computer, and the measured values can be sent in the form of a keyboard entry to the cursor position in any application or a predefined template.
Various functions in combination with the Leica DISTO™ Plan app, such as Smart Room, as well as the import of PDF files into the app, simplify the digital documentation of results.
![](https://www.sccssurvey.co.uk/media/wysiwyg/Leica-DISTO-D5-Package_application.jpg)
![](https://www.sccssurvey.co.uk/media/wysiwyg/Leica-DISTO-D5-Package_application.jpg)
Features:
- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal mode
- Fast Start-up time – ready in under 1 second
- Foldable end-piece with automatic detection
- Bright and clear 2.4” IPS display with scratch-proof lens
- Trigger measurements with gestures
- Memory for 50 measurements
- Li-Ion rechargeable battery
- USB-C charging
- Keyboard simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO
![](https://www.sccssurvey.co.uk/media/wysiwyg/Leica_DISTO_Plan-App_Infographic.jpg)
![](https://www.sccssurvey.co.uk/media/wysiwyg/Leica_DISTO_Plan-App_Infographic.jpg)
Technical Data
Accuracy with favourable conditions * | 1.0 mm / 1/16" *** |
Accuracy with unfavourable conditions ** | 2.0 mm / 1/8" *** |
Range with favourable conditions * | 0.05 – 200 m / 0.07 – 660 ft *** |
Range with unfavourable conditions ** | 0.05 – 120 m / 0.07 – 400 ft *** |
Smallest unit displayed | 0.1 mm / 1/32" |
X-Range Power Technology | yes |
Laser | Class 2, 635 nm, <1 mW |
Digital Pointfinder with 4-fold zoom | yes |
Tilt measuring range **** | 360° |
Tilt measuring tolerance | ± 0.2° |
ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
Protection class | IP54 (dust- and splash water protected) |
Auto. laser switch off after | 90 s |
Auto. power switch off after | 180 s |
Bluetooth® Smart | Bluetooth® v5.0 |
Range of Bluetooth® Smart | up to 10 m |
Battery durability (Li-Ion 2 000 mAh) | up to 5’000 measurements up to 10 hours operation time |
Dimension (H x D x W) | 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in |
Weight (with batteries) | 180 g / 6.35 oz |
Temperature range storage | operation | -25 to 70°C / -13 to 158°F | -10 to 50°C / 14 to 122°F |
* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
*** Tolerances apply from 0.05 m to 5 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.
**** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.
SKU | 950879 |
---|---|
MPN | 950879 |
Brand | Leica Geosystems |
Package Includes |
|
