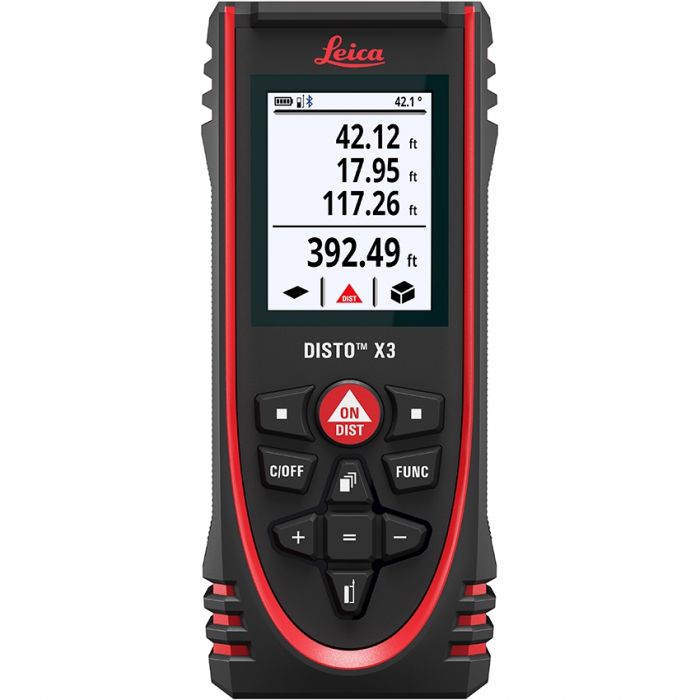

Leica Disto X3 Laser Distance Meter
Leica Disto X3 Laser Distance Meter
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk

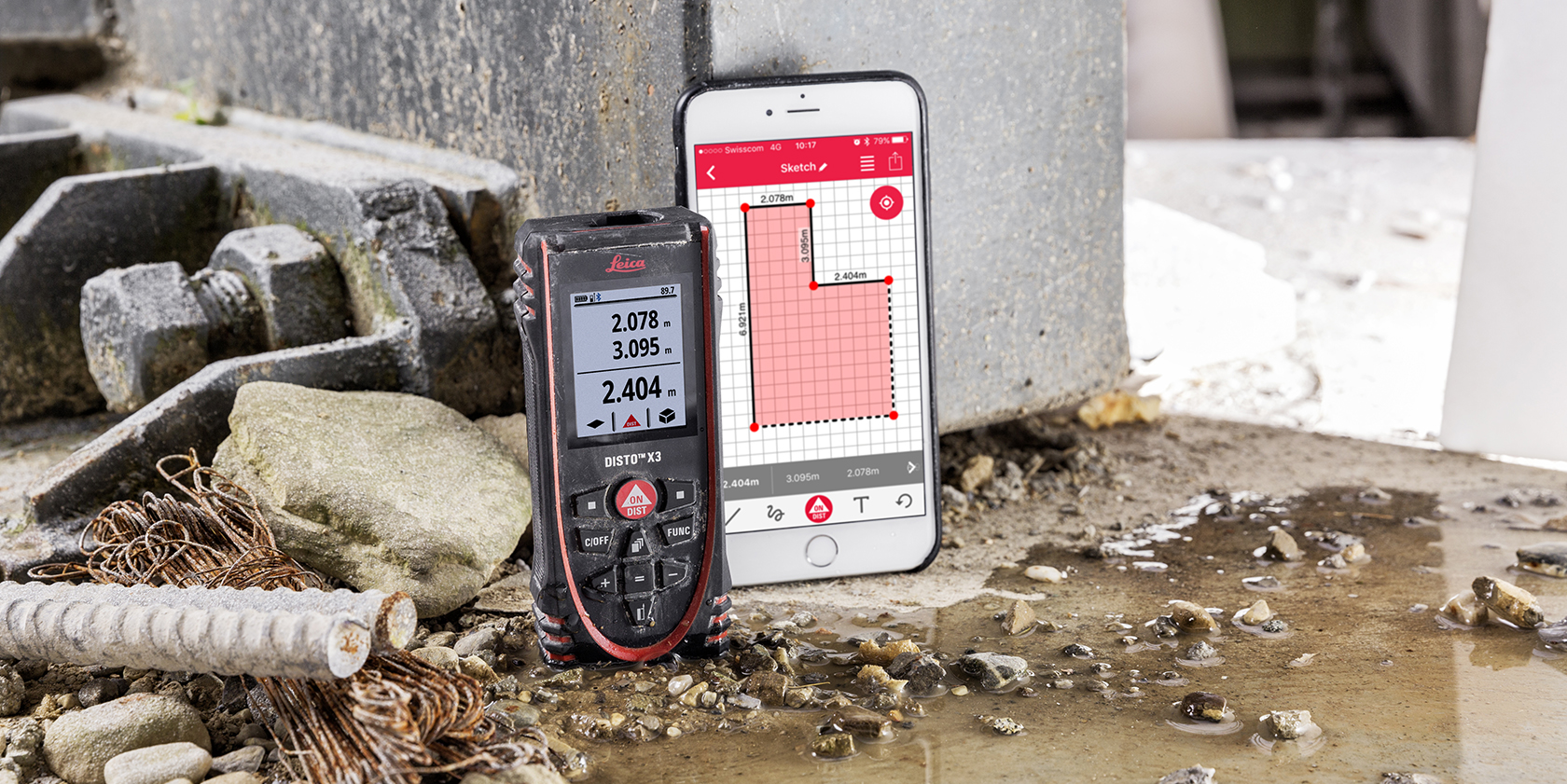

Rugged design for tough conditions
Construction Site Proof
The Leica DISTO™ X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards.
Smart Room
New Leica DISTO™ technologies in combination with the Smart Room function of the Leica DISTO™ Plan app allow you to quickly create scaled floor plans on your smartphone or tablet.
Point to Point Measurement
The Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.
Intuitive
Easy to use buttons and functions make working with the DISTO™ X3 fast and intuitive.
Price includes
|
 |
 |
Document & Visualise |
| Technical Specifications | Leica DISTO X3 | Leica DISTO X4 |
| Typ. distance measuring accuracy (ISO 16331-1 certified) | ± 1.0 mm | ± 1.0 mm |
| Range (ISO 16331-1 certified) | 0.05 up to 150m | 0.05 up to 150m |
| Measuring units | m, ft, in | m, ft, in |
| X-Range Power Technology |  |
|
| Tilt sensor | |
|
| Tilt sensor accuracy to the housing | ± 0.2° | ± 0.2° |
| Smart Base measuring range: Horizontal | 360° for use with Leica DST 360 | 360° for use with Leica DST 360 |
Smart Base measuring range: Vertical |
-64° to > 90° for use with Leica DST 360 | -64° to > 90° for use with Leica DST 360 |
| Typ. tolerance of the P2P function for use with Leica DST 360 | ± 2mm at 2m, 5mm at 5m, 10mm at 10m | ± 2mm at 2m, 5mm at 5m, 10mm at 10m |
| Levelling range | 5° for use with Leica DST 360 | 5° for use with Leica DST 360 |
| Pointfinder with zoom | 4x | |
| Memory of last measurement | 20 | 20 |
| Free software for Windows | |
|
| Free App for iOS and Android | |
|
| Smart Room function support | |
|
| General data interface | Bluetooth® Smart | Bluetooth® Smart |
| Data interface for 3D point data | Bluetooth® Smart | Bluetooth® Smart |
| Measurements per set of batteries | up to 4'000 (reduced when used with Bluetooth®) |
up to 4'000 (reduced when used with Bluetooth®) |
| Service life of batteries | up to 8h (reduced when used with Bluetooth®) |
up to 8h (reduced when used with Bluetooth®) |
| Multifunctional endpiece with automatic reference detection | |
|
| Batteries | 2x AA Alkaline | 2x AA Alkaline |
| Protection class | IP 65 | IP 65 |
| 2m drop tested | |
|
| Dimensions | 132 x 56 x 29 mm | 132 x 56 x 29 mm |
| Weight with batteries | 184g | 188g |
Functions and features

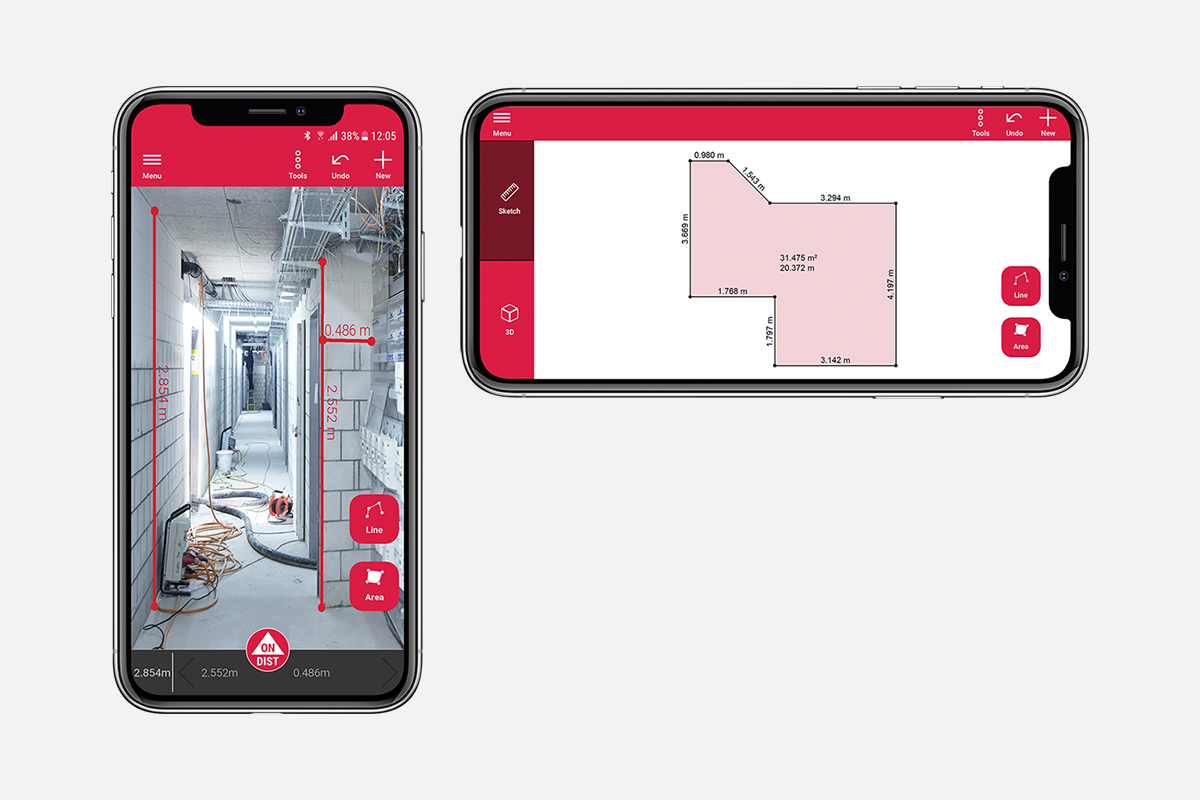

Leica DISTO™ Plan App
Easily document and visualise your measurements
App includes in app purchase
SKETCH YOUR PLAN Create a sketch on your smartphone or tablet and then assign distance measurements taken with your DISTO™ to each line. The app’s ‘auto-scale’ function adjusts the lines’ length and the result is a scaled, CAD ready plan.
SMART ROOM Create CAD ready floor plans with your DISTO™ X3 or X4 simply by taking clockwise or counter-clockwise measurements of a room. Once all measurements are taken, the app’s Smart Room function automatically generates the plan.
MEASURE AND PLAN Point to Point technology and the app’s ‘Measure Plan’ and ‘Measure Façade’ functions make it possible to create detailed floor and wall plans, including doors and windows. You can export your plans from devices which support this functionality as dxf or dwg files directly into your preferred CAD solution.
MEASURE HIDDEN CORNERS The DISTO™ Plan App’s ‘Measure Façade’ function makes it easy to measure points which are hidden behind objects. Simply take your measurements and the app then automatically calculates the hidden points.
SKETCH ON PHOTO Leica DISTO™ Bluetooth® Smart technology allows you to assign distance measurements to the appropriate part of a photo taken with your tablet or smartphone.
| SKU | 850833 |
|---|---|
| MPN | 850833 |
| Brand | Leica Geosystems |
| Package Includes |
|
