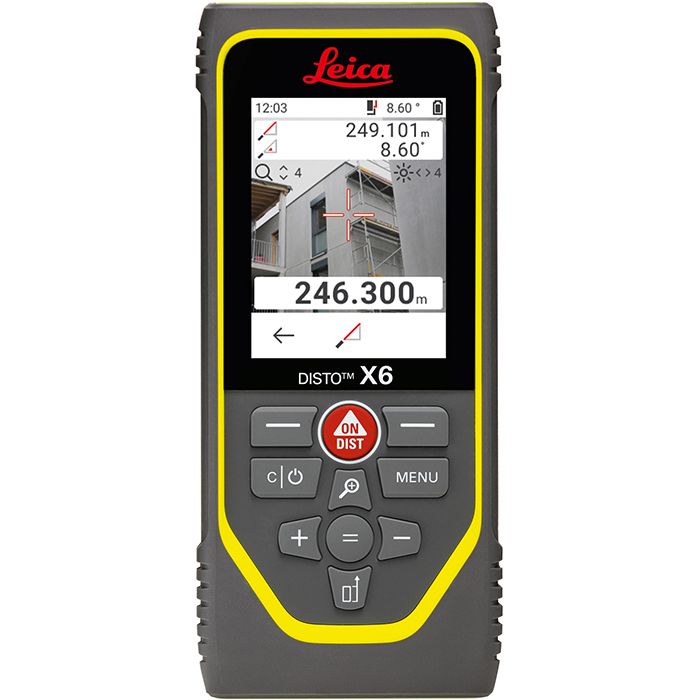

Leica DISTO X6 Laser Distance Meter
Leica DISTO X6 Laser Distance Meter
Leica DISTO™ X6 Laser Distance Meter with Digital Pointfinder with 4- fold zoom, 2.8" Touchscreen, Li-Ion Technology, Automatic
end-piece, Measure with Picture, USB data storage, 250m range, +/-1mm accuracy, tilt sensor
The Leica DISTO X6 is an ideal tool for construction sites with rough terrain. Its IP65 rating guarantees protection against dust and water jets, and the device is drop tested from a height of 2 meters, which makes it a reliable and durable laser measure. The device is also perfect for outdoor use, thanks to its Pointfinder and large, crystal-clear display. The touch screen and the additional measuring button on the side ensure simple and ergonomic operation. Moreover, a variety of measurement functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements, make it possible to complete any measurement task quickly and efficiently. The results can be downloaded as a report and integrated directly into quotations, ensuring a digital workflow that is free of errors.
Package includes:
DISTO X6, pouch, USB-C to USB-A cable, hand loop, Quickstart guide, Warranty card, Safety Manual, Calibration Certificate Silver.
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
The Leica DISTO™ X6 is an exceptionally durable distance meter designed for use in rugged construction sites. With its tough housing, scratch-resistant display glass, and IP65 protection class, it can withstand rough handling and harsh conditions. The device features a digital Pointfinder, ergonomic touchscreen, and additional measuring button on the side, making it easy to complete any measuring task quickly and efficiently. The results can be sent and processed in the DISTO™ Plan app.
The large touchscreen allows for fast and intuitive operation, with measurement functions that are clearly arranged and easily accessible using familiar gestures like swiping or zooming with two fingers. The digital Pointfinder makes it ideal for bright sunlight or long distances.
All measurement results can be summarised in measurement reports on the Leica DISTO™ X6 and downloaded via the USB interface for use in quotations and invoices. The device has an extra-large memory capacity, allowing multiple measurement protocols to be saved, simplifying documentation.
The Leica DISTO™ X6 can be converted into a solid measuring station with the Leica DST 360-X adapter, which is used to collect 2D and 3D data that can be further processed in the DISTO™ Plan app or CAD software.
The device is environmentally friendly thanks to its Li-ion batteries which provide a long-lasting power supply and can even be used while charging.
Features:
- Range up to 250 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Fast Start-up time – ready in under 1 second
- Bright and clear 2.8” IPS touchscreen with scratch-proof lens
- DIST key on the side for even more intuitive measurements
- Robust according to IP65 and drop tested from 2 meters
- Trigger measurements with gestures
- Memory for 300 reports and 1’000 captured 3D points
- Li-Ion rechargeable battery
- USB-C charging and download of data
- Keyboard simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO™ Plan App (iOS and Android) and DISTO™ transfer (Windows)
- P2P measuring with DST 360-X adapter
Technical Data
| Leica DISTO X6 | Leica DISTO X6 - P2P Package | |
| Accuracy with favourable conditions * | 1.0 mm *** | |
| Accuracy with unfavourable conditions ** | 2 mm *** | |
| Range with favourable conditions * | 0.05 – 250 m *** | |
| Range with unfavourable conditions ** | 0.05 – 150 m *** | |
| Smallest unit displayed | 0.1 mm | |
| X-Range Power Technology | Yes | |
| Laser | class 2, 635 nm, <1 mW | |
| Digital Pointfinder with 4-fold zoom | Yes | |
| Tilt measuring range **** | 360° | |
| Tilt measuring tolerance | ± 0.2° | |
| Measuring range with Leica DST 360 horizontal | - | 360° |
| Measuring range with Leica DST 360 vertical | - | -64° to >90° |
| Tolerance P2P function at distances | - | ± 5 mm / 5 m ± 10 mm / 10 m |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m | |
| Protection class | IP65 (dust tight and jet water protected) drop tested from 2 m height |
- |
| Auto. laser switch off after | 90 s | |
| Auto. power switch off after | 180 s | |
| Bluetooth® Smart | Bluetooth® v5.0 | |
| Range of Bluetooth® Smart | up to 10 m | |
| Battery durability (Li-Ion 2 000 mAh) | up to 4’000 measurements up to 8 hours operation time |
|
| Dimension (H x D x W) | 154 x 68 x 25 mm | 208 x 190 x 150 mm |
| Weight (with batteries) | 230 g | 1580 g |
| Temperature range storage | operation | -25 to 70°C | -10 to 50°C | |
* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
*** Tolerances apply from 0.05 m to 5 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.
**** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.
| SKU | 950909 |
|---|---|
| MPN | 950909 |
| Brand | Leica Geosystems |
| Package Includes |
|
