Leica DISTO X6 P2P Package
Leica DISTO X6 P2P Package

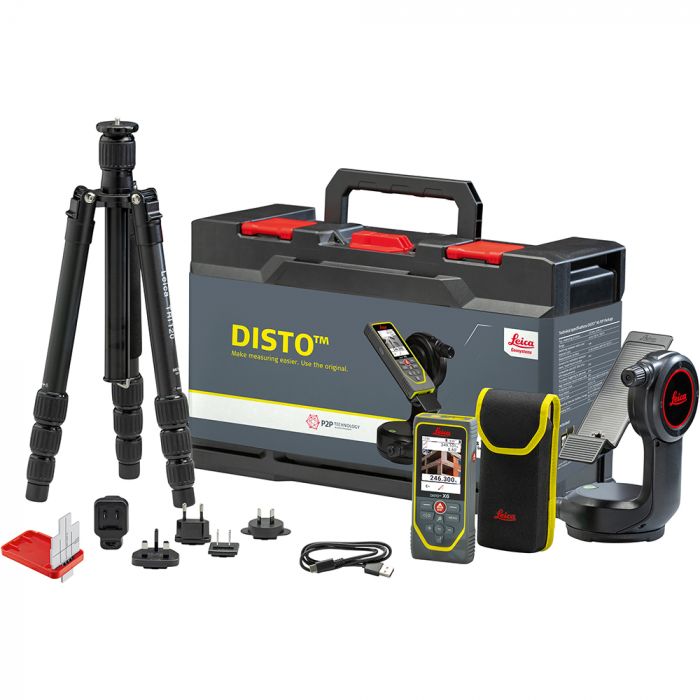

Leica DISTO™ X6 Laser Distance Meter with DST 360-X adapter for P2P measuring and DXF CAD data capturing, TRI 120 tripod in Leica metaBox 165L
Using the DISTO X6 and the Leica DST 360-X Adapter together allows for P2P Technology to be utilized. This means that distances between any two points or complex areas can be easily measured from a safe location, even in normally inaccessible areas. Once the measurements are complete, the results can be downloaded as perfectly organized DXF files and easily processed in any CAD software. With the DISTO Plan app, you can visualize the data directly on site, making it easy to see if any measurement points are still missing. This streamlined process supports digitalization, shortens workflows, saves money, and reduces the likelihood of errors.
Package includes:
DISTO X6, pouch, charger with cable, hand loop, DST 360-X adapter, TRI 120 tripod, GZM 3 target plate, Quickstart guide, Warranty card, Safety Manual, Calibration Certificate Silver.
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
Features:
- Range up to 250 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Fast Start-up time – ready in under 1 second
- Bright and clear 2.8” IPS touchscreen with scratch-proof lens
- DIST key on the side for even more intuitive measurements
- Robust according to IP65 and drop tested from 2 meters
- Trigger measurements with gestures
- Memory for 300 reports and 1’000 captured 3D points
- Li-Ion rechargeable battery
- USB-C charging and download of data
- Keyboard simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO™ Plan App (iOS and Android) and DISTO™ transfer (Windows)
- P2P measuring with DST 360-X adapter
Technical Data
| Leica DISTO X6 | Leica DISTO X6 - P2P Package | |
| Accuracy with favourable conditions * | 1.0 mm *** | |
| Accuracy with unfavourable conditions ** | 2 mm *** | |
| Range with favourable conditions * | 0.05 – 250 m *** | |
| Range with unfavourable conditions ** | 0.05 – 150 m *** | |
| Smallest unit displayed | 0.1 mm | |
| X-Range Power Technology | Yes | |
| Laser | class 2, 635 nm, <1 mW | |
| Digital Pointfinder with 4-fold zoom | Yes | |
| Tilt measuring range **** | 360° | |
| Tilt measuring tolerance | ± 0.2° | |
| Measuring range with Leica DST 360 horizontal | - | 360° |
| Measuring range with Leica DST 360 vertical | - | -64° to >90° |
| Tolerance P2P function at distances | - | ± 5 mm / 5 m ± 10 mm / 10 m |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m | |
| Protection class | IP65 (dust tight and jet water protected) drop tested from 2 m height |
- |
| Auto. laser switch off after | 90 s | |
| Auto. power switch off after | 180 s | |
| Bluetooth® Smart | Bluetooth® v5.0 | |
| Range of Bluetooth® Smart | up to 10 m | |
| Battery durability (Li-Ion 2 000 mAh) | up to 4’000 measurements up to 8 hours operation time |
|
| Dimension (H x D x W) | 154 x 68 x 25 mm | 208 x 190 x 150 mm |
| Weight (with batteries) | 230 g | 1580 g |
| Temperature range storage | operation | -25 to 70°C | -10 to 50°C | |
* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
*** Tolerances apply from 0.05 m to 5 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.
**** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.
| SKU | 950878 |
|---|---|
| MPN | 950878 |
| Brand | Leica Geosystems |
| Package Includes |
|
