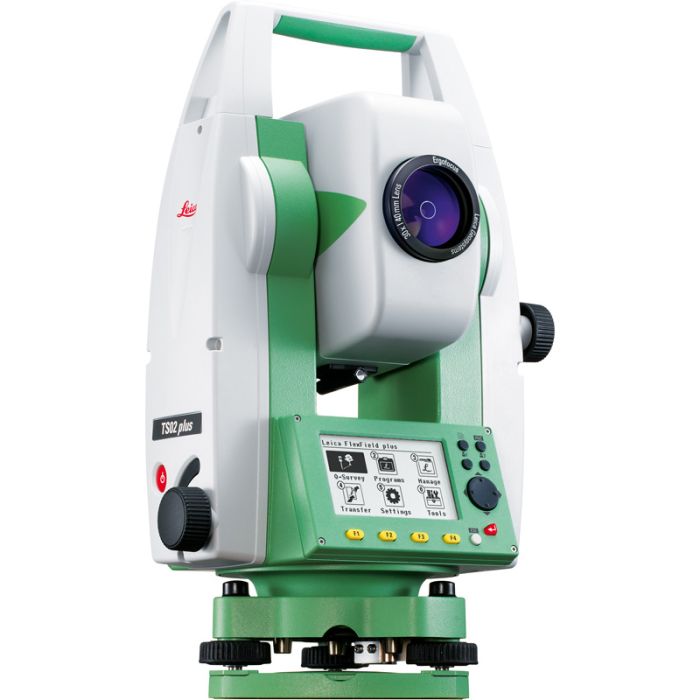

The Leica Flexline TS02 is the perfect Total Station for standard measuring. Using standard application software it is designed for moderate accuracy applications and below. Transfer information wirelessly conveniently using Bluetooth technology to any data collector and process it using Leica SmartWorx Viva or other similar software. The Leica FlexLine TS02 offers a selection of EDM options and is able to measure to both prisms and direct objects without the need for a reflector. It also comes with plug and play USB functionality enabling data transfer of files such as GSI, ASCII, CSV and more. The alpha numeric keyboard with number, letters and special characters allows for easy entry of data, minimising errors and enhancing productivity.
The Leica Flexline TS02 uses the Lithium-Ion batteries which give long life, fast charging and operation times of 20hours. The Flexline is protected to IP55 specification and is water and dust protected.
The Leica Flexline TS02 is easy to setup using a laser plummet with a guided process and start-up sequence. The ergonomic key layout and large display provides error-free data input and makes operation simple.
Each package includes
- TS02plus Total Station & Keyboard
- GDF111-1 Tribrach
- GEB211 Battery (x2)
- GKL211 Charger
- GEV189 Data-Transfer-Cable
- GMP111-0 1 Miniprism Set
- User Manual
- Carry Case
- Calibration Certificate - 1 Year
- 1yr Warranty and Basic Customer Care Package
Leica FlexLine TS02 Total Station Details | |
Angle Measurement | |
Accuracy | optional 3", 5", 7" |
Method | Absolute, Continuous, Diametrical |
Resolution Display | 0.1" |
Compensation | Quadruple Axis |
Accuracy - Compensator Setting | 1", 1.5", 2" |
With Reflector - Distance Measurement with | |
Round Prism - Range | 3500metres |
Reflective Tape - Range | 250metres |
With Reflector no - Distance Measurement | |
Range FlexPoint Power PinPoint Ultra PinPoint |
Optional 30 m Optional > 400 m3) Optional > 1000 m3) |
Accuracy / Measurement time | 2 mm+2 ppm2 / typ. 3 s |
Dot size - Laser | At 30metres approximatley 7 mm x 10 mm |
Communication & Data storage | |
Extended Internal memory | Max - 24000 fixpoints, Max - 13500 measurements |
USB memory stick | Optional 1 Gb |
Interfaces | Optional USB A and mini B, Bluetooth® Wireless |
Guide Light - Electronic | |
Range - Working
Accuracy - Positioning |
Optional 5metres – 150metres Optional 5centimetres at 100metres |
General | |
Telescope | |
Magnification | 30x |
Power - Resolving | 3" |
Range - Focusing | 1.7metres - infinity |
Reticle type | Illuminated with 5 levels of brightness |
Keyboard and Display | |
Graphical Display | 160 x 280 pixels, graphical and illuminated with 5 levels of brightness |
Keyboard | Standard keyboard Optional Alpha numerical, Second keyboard |
Laserplummet | |
Type | Laser point with 5 levels of brightness |
Accuracy - Centering | 1.5mm @ 1.5metres instrument height |
Battery | |
Type of | Lithium-Ion |
Operating time | Approximatley 20 hours |
Weight | |
Total Station | 5.1kilograms |
Environmental | |
Operational Temperature | -20°C to +50°C Optional Arctic Version -35°C to 50°C |
Dust & splash proof rating | IP55 |
Humidity | 95% |
SKU | Leica FlexLine TS02 Series |
---|---|
Brand | Leica Geosystems |
Package Includes | TS02plus Total Station & Keyboard, GDF111-1 Tribrach, GEB211 Battery (x2), GKL211 Charger, GEV189 Data-Transfer-Cable, GMP111-0 1 Miniprism Set, User Manual, Carry Case, Calibration Certificate - 1 Year, 1yr Warranty and Basic Customer Care Package. |
