Leica GS05 GNSS RTK Rover
Leica GS05 GNSS RTK Rover

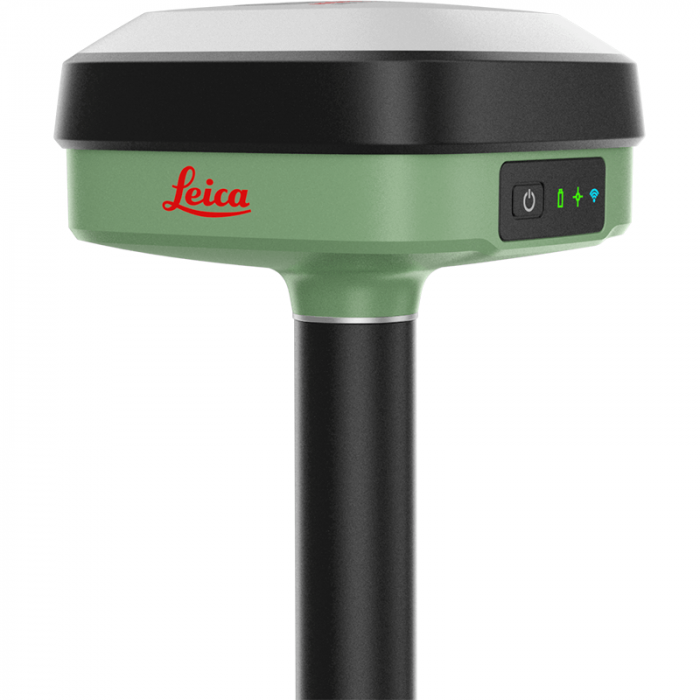

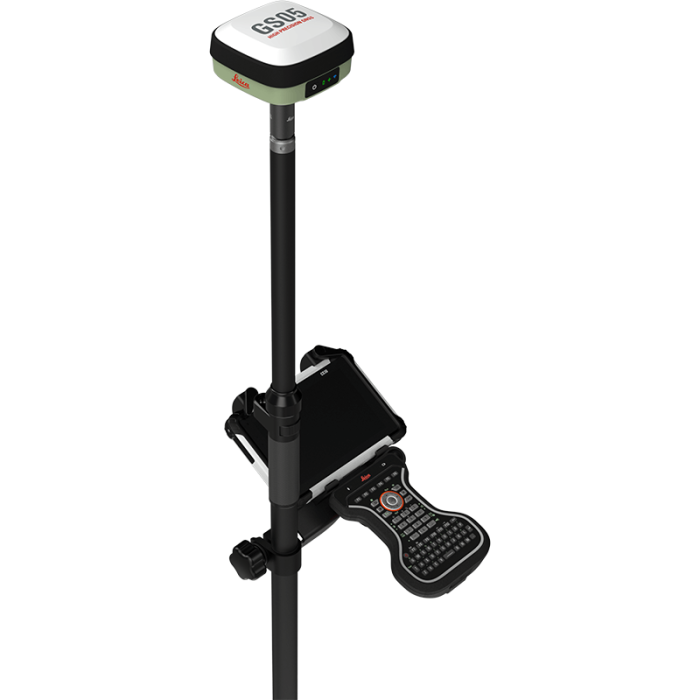

The Leica GS05 Smart Antenna is a lightweight, compact GNSS solution with advanced tilt compensation designed for all-day measuring ease. Eliminate the hassle of leveling bubbles and capture more points efficiently. With the GS05, streamline your workflow and experience enhanced accuracy in every measurement.
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Lightweight, but feature heavy

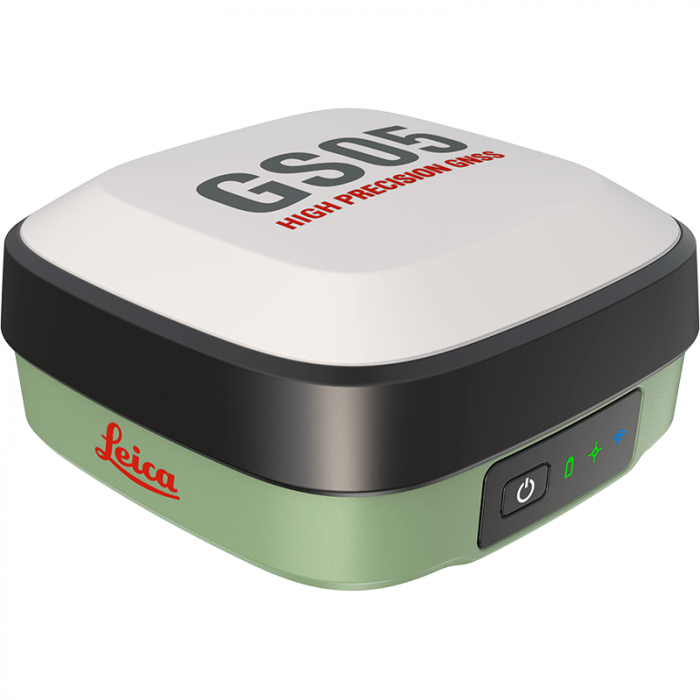

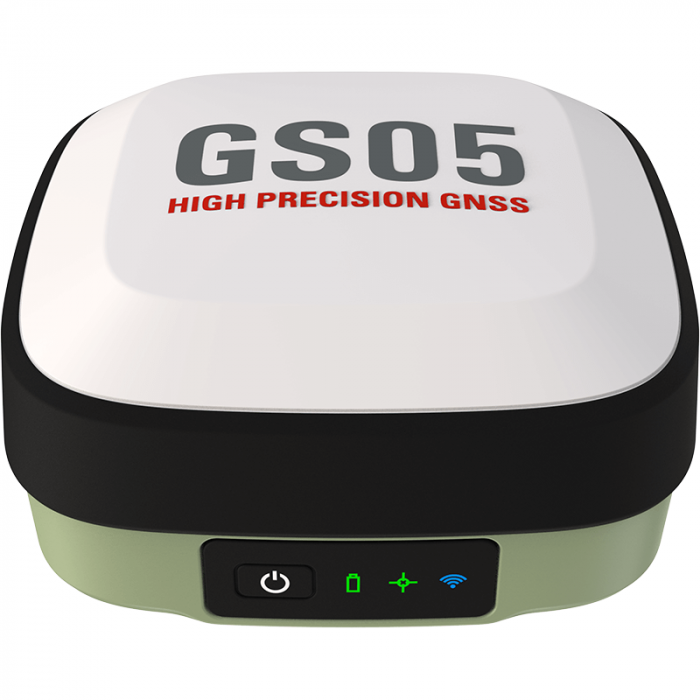

Small enough to fit in the palm of your hand and barely noticeable on top of your pole, the GS05 packs a lot of tech into just 0.75 kilograms. With 4G, UHF radio, a 10-hour internal battery, tilt compensation, and IP-rated durability, you’ll be amazed at what this lightweight powerhouse is capable of.

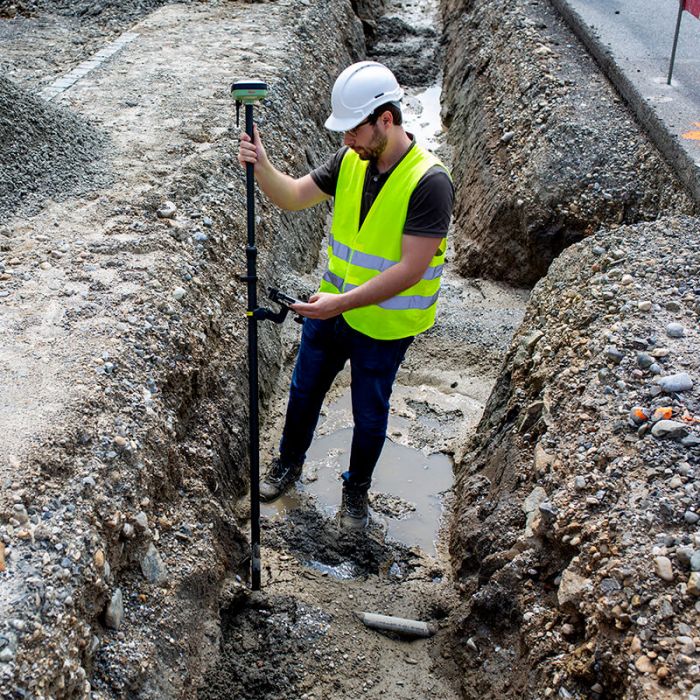

Tilt compensating
The GS05 includes Leica Geosystems’ proven tilt compensation, which is both calibration-free and immune to magnetic disturbances.

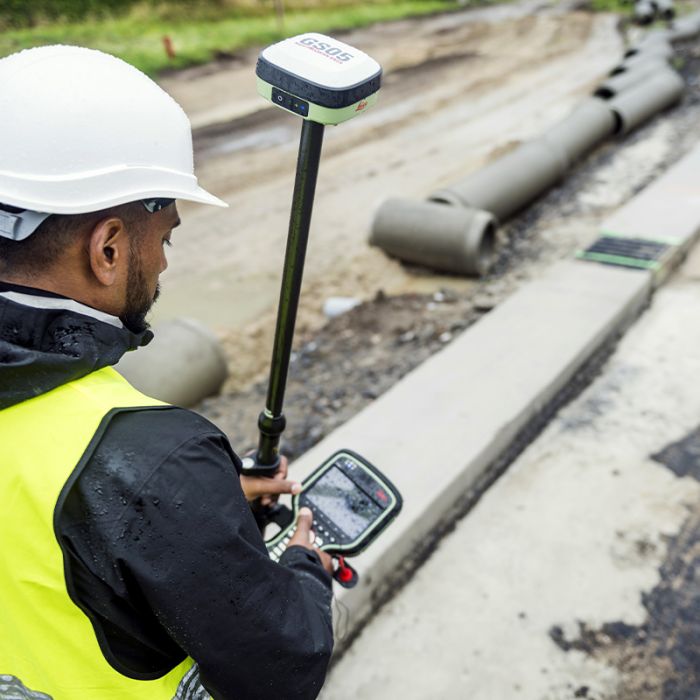

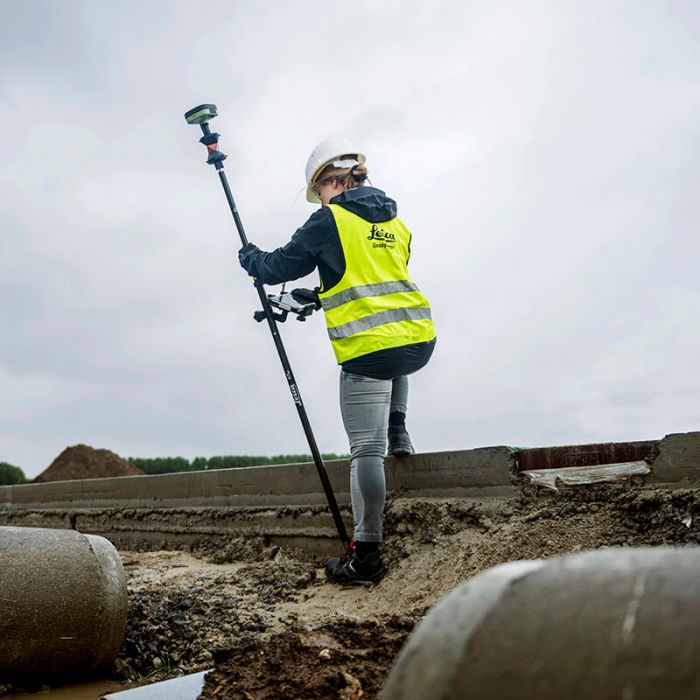

Forget the bubble and focus on the task at hand, saving time and effort. Measure points without breaking stride and stake points quicker and simpler than ever.
Trustworthy

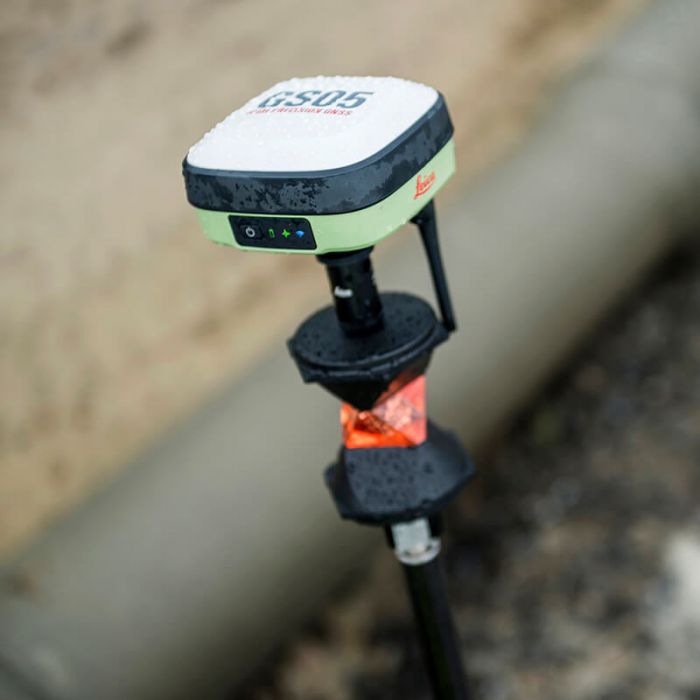

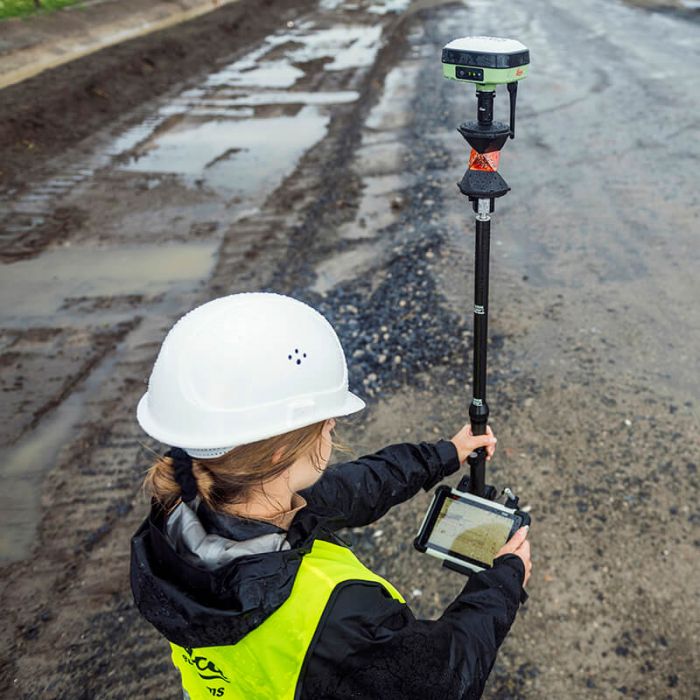

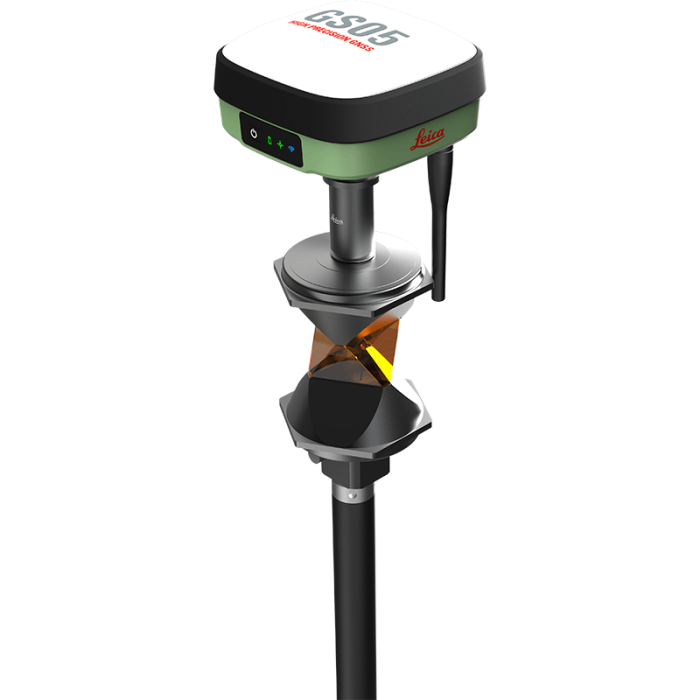

The GS05 is built on Leica Geosystems’ reputation for quality. It seamlessly integrates with Leica Captivate field software, Captivate tablets and controllers, Leica Infinity, and GeoCloud Drive, and can even be combined with total station operation as a SmartPole. Maintenance, service and support are all available through Active Customer Care.
GNSS TECHNOLOGY & SERVICES
QZSS | SBAS
Enabled through future firmware updates
and traceability
MEASUREMENT PERFORMANCE & ACCURACY
Network RTK
Hz 10 mm + 0.5 ppm | V 20 mm + 0.5 ppm
Static and rapid static (phase)
Hz 5 mm + 0.5 ppm | V 10 mm + 0.5 ppm
COMMUNICATIONS
802.11 b/g/n
NMEA output
Network RTK
NMEA 0183 v4.00 & v4.10 and Leica proprietary
VRS, FKP, iMAX, MAC (RTCM SC 104)
1, 2, 3, 4, 5, 7, 8, 20, 28, 34, 38, 39, 40, 41, 66
GENERAL
Data type and recording rate
Leica GNSS raw data and RINEX data at up to 10 Hz
External power supply
Operating time7
USB-C 5V chargable
Typical time up to 10 hours
Dimensions
118.9 mm x 118.9 mm x 75.5 mm
Drop
Proof against water, sand and dust
Vibration
Humidity
Bump
-40 to +65°C operating with external power
-40 to +80°C storage
Withstands topple over from a 2 m survey pole onto hard surfaces
IP66 | IP68 (IEC60529 | MIL STD 810H 506.6 Proc II | MIL STD 810H 512.6 Proc I | MIL STD
810H 510.7 Proc II)
Withstands strong vibration (ISO9022-36-08-2; ISO 9022-3:2022(E))
95% (ISO9022-12-04-2; ISO 9022-2: 2015/Amd1:2023(E) | MIL STD 810H 507.6)
ISO 9022-31-08-1; ISO 9022-3: 2022(E)
| SKU | Leica GS05 GNSS RTK Rover |
|---|---|
| Brand | Leica Geosystems |
| Package Includes | N/A |
