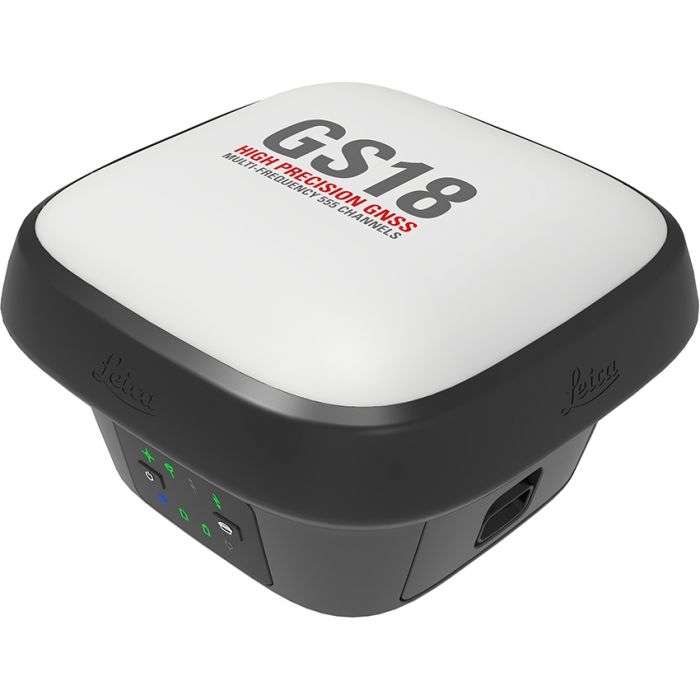

Leica GS18 T – The Original Tilt Compensating GNSS RTK Rover
Leica GS18 T – The Original Tilt Compensating GNSS RTK Rover
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
Resistant to magnetic disturbances and calibration-free – no need to level
The Leica GS18 T is the world’s fastest and simplest-to-use GNSS smart antenna and RTK rover. Measure any point quicker and easier without needing to hold the pole vertical.
This latest technology and innovation combine GNSS and IMUs (inertial measurement units) to be the first true tilt compensation solution that is immune to magnetic disturbances and is calibration-free.
Focus on your task at hand and save time as you no longer need to watch and level the bubble. Continuous, accurate positioning when in close proximity to metallic objects - measure where others couldn’t before. The GS18 T works directly out of the box without any calibration procedure.
Engaging software
The Leica GS18 T RTK rover combines with the engaging Leica Captivate software for a powerful and immersive experience. Through the ease of touch, management of complicated data is made surprisingly enjoyable and actionable. Leica Captivate covers industries and applications with barely more than a simple swipe, regardless of whether you work with GNSS, total stations or both.
Infinite possibilities
While Leica Captivate captures and models data in the field, Leica Infinity software processes the data back in the office. An efficient data transfer guarantees the project stays on track. Captivate and Infinity works together to join prior survey data and edit projects quicker and more effectively.
With built-in quality assurance, this GNSS RTK rover records how the pole was levelled during the measurement and records the values, confirming measurement traceability and comprehensive quality reporting.
Powerful handheld devices
Take your complete office on the go when you learn the power to overcome any environment from the palm of your hand. The Leica CS20 controller and Leica CS35 tablet deliver the ultimate in control and accessibility with total mobility. Touchscreen technology allows for easy and fast data processing while an impressive 3D view transforms your GNSS experience.
TILT COMPENSATION
- Increased measurement productivity and traceability
- Calibration-free
- Immune to magnetic disturbances
- Integrated quality assurance of pole tilt
- Reduction of human error
RTKplus
- 555 channels for more signals, faster acquisition and improved sensitivity
- Intelligent management of multi-frequency, multiconstellation signals
- Intelligent selection to automatically reject reflected or noisy signals
SMARTLINK
- Achieve centimetre accurate positioning worldwide - perfect when working in remote areas around the globe
- No RTK base station or RTK network required, correction data is continuously transmitted by satellite delivering global coverage
- Bridging RTK outages for uninterrupted centimetre positioning
SMARTCHECK
- Unique RTK technology provides continuous checks to guarantee correct results
- Initialisation within seconds
- Complete reliability
BUILT FOR THE MOST DEMANDING ENVIRONMENTS
- IP66 / IP68 protection
- Built for extreme temperatures of -40°C to +65°C
- Fulfils toughest standards throughout the complete product lifetime
- Rugged aluminium housing
ERGONOMICS
- Integrated 4G mobile phone, UHF radio RTK devices
- Compact housing
ONLINE SERVICES
- HxGN SmartNet Satellite Positioning - your No.1 partner for network RTK
- Leica Active Assist - the next level in support
- Leica Exchange - transfer data easily, quickly and safely
Leica Geosystems GNSS Comparison Chart |
|||||||||||||||||||||||||||||||||||||||||
 |
 |
 |
 |
 |
 |
||||||||||||||||||||||||||||||||||||
| Signal tracking |
Dual-frequency
|
Dual-frequency
|
Multi-frequency
|
Multi-frequency
|
Multi-frequency
|
Multi-frequency
|
|||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| Tilt compensation |
 |
|
|
 |
|
|
|||||||||||||||||||||||||||||||||||
| Single baseline RTK |
Hz 10 mm + 1 ppm / V 20 mm + 1 ppm
|
Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
|
Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
|
Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
|
Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
|
Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
|
|||||||||||||||||||||||||||||||||||
| Network RTK |
Hz 10 mm + 0.5 ppm / V 20 mm + 0.5 ppm
|
Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm
|
Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm
|
Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm
|
Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm
|
Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm
|
|||||||||||||||||||||||||||||||||||
| Static (phase) with long observations |
Hz 3 mm + 0.5 ppm / V 6 mm + 0.5 ppm
|
Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm
|
Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm
|
Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm
|
Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm
|
Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm
|
|||||||||||||||||||||||||||||||||||
| Static and rapid static (phase) |
Hz 5 mm + 0.5 ppm / V 10 mm + 0.5 ppm
|
Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm
|
Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm
|
Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm
|
Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm
|
Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm
|
|||||||||||||||||||||||||||||||||||
| Reliability |
99,95%
|
99,95%
|
99,95%
|
99,95%
|
99,95%
|
99,95%
|
|||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| RTK reference station functionality |
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| Cellular / UHF Radio (receive & transmit) modem |
Controller internal
|
3G
|
3G
|
4G
|
3G
|
3G
|
|||||||||||||||||||||||||||||||||||
| Storage |
Controller internal
|
MicroSD card
|
MicroSD card
|
SD card
|
SD card
|
SD card
|
|||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| Power, Bluetooth®, USB, RS232 |
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| Event, PPS |
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| Operating temperature -40°C to 65°C |
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| IP68 proof against water, sand and dust |
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| Weight (without battery) |
0.60 kg
|
0.93 kg
|
0.93 kg
|
1.20 kg
|
1.20 kg
|
1.84 kg
|
|||||||||||||||||||||||||||||||||||
| SKU | GS18T |
|---|---|
| Brand | Leica Geosystems |
| Package Includes | N/A |
