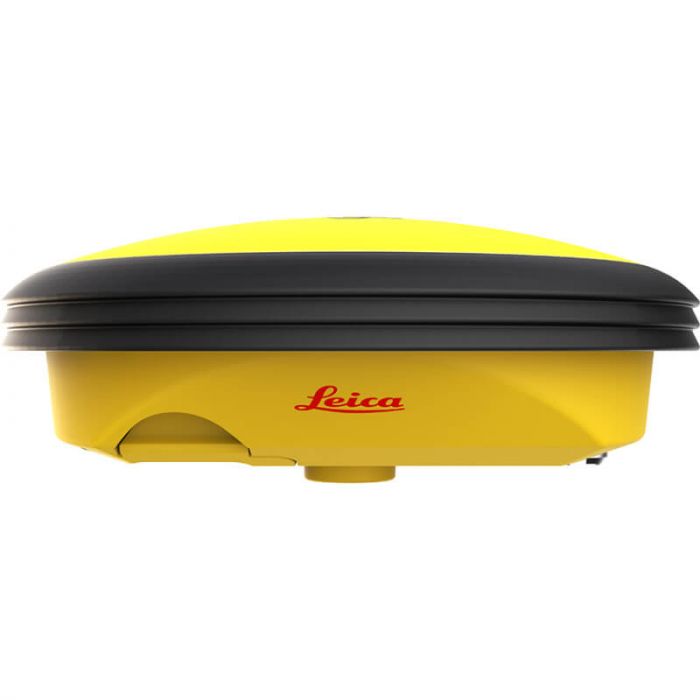

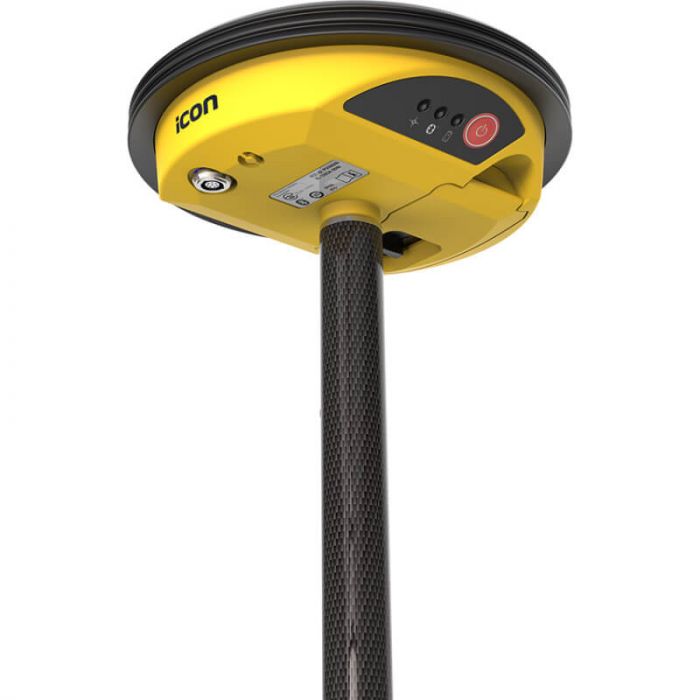

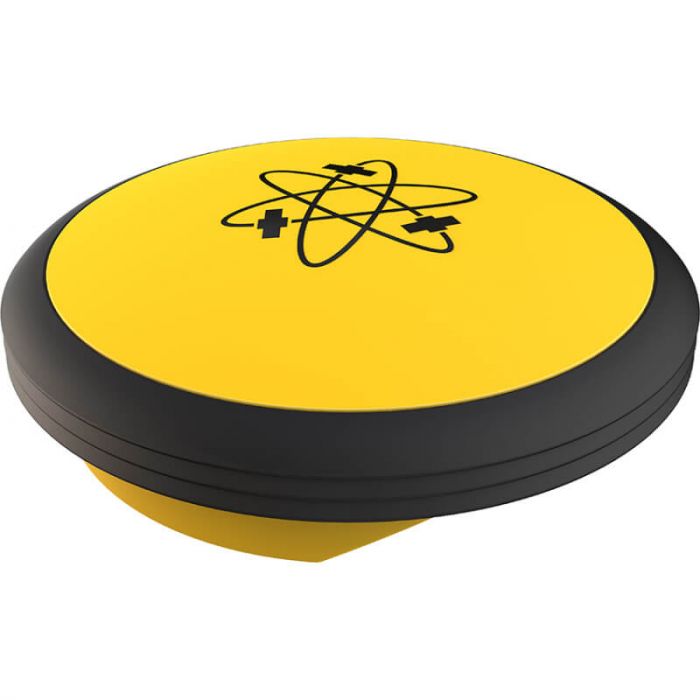

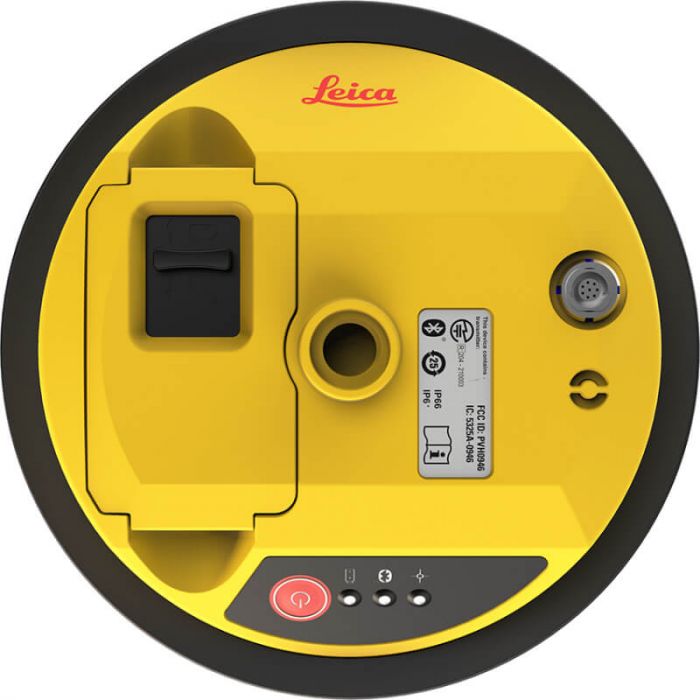

Compact and trustworthy GNSS RTK rover for construction
Take the first step into Leica iCON construction workflows with Leica Geosystems’ entry-level GNSS RTK rover. The iCON gps 30 is designed to assist construction companies move forward from traditional, to modern digital stakeout and measurement methods. Experience faster workflows, with accurate results and higher efficiency in construction projects, such as utility or road construction. Using advanced RTK technologies the rover delivers consistently accurate and reliable positions. Integrated into the well-established and construction tailored iCON site field software, the iCON gps 30 speaks the language of construction site professionals.
- Entry-point into Leica iCON GNSS performance: Easy to use and equipped with the construction tailored Leica iCON site field software, the iCON gps 30 facilitates your entry into the Leica iCON GNSS portfolio.
- Lightest pole weight: The light, compact and balanced design makes it comfortable to use and carry in the field.
- Reliable and accurate measurement results: With the highest level of position reliability in its class, the iCON gps 30 delivers accurate results and increases productivity.
- Improve the productivity of any building project by adapting digital measurement methods
- Determine and document the position of water and sewer lines, oil and gas pipes or power and communication lines as part of the utility construction process
- Stakeout rough outlines following building construction tasks or subdividing real property
- Transfer outlines from design to field in landscape gardening projects or road construction
- Simple survey of ground control points for UAV workflows
- Leica iCON CC70 and CC80 field controller
- Leica iCON field software
Access the iCON GNSS performance
The Leica iCON gps 30 has been created to facilitate the shift from conventional measurement methods using tapes and strings, to up-to-date digital methods, the iCON gps 30 offers an easy-to-use and efficient solution for construction measurement tasks.
Equipped with Leica iCON field software, the iCON gps 30 can be used to:
Designed with the operator in mind, the iCON gps 30 is an exceptionally lightweight and compact GNSS RTK rover, providing consistently reliable and correct positions through advanced RTK technologies.
Integrated with the well-established iCON field software, tailored to typical construction workflows, the iCON gps 30 speaks the language of construction site professionals.
The iCON gps 30 is compatible with:
| Leica iCON gps 30 | |||
|---|---|---|---|
| GNSS PERFORMANCE | |||
| GNSS Technology | Leica RTKplus | Adaptive on-the-fly satellite selection | |
| Leica SmartCheck | Continuous check of RTK solution | Reliability 99.95% | |
| Signal tracking | SmartTrack | GPS (L1, L2, L2C, L5), Glonass (L1, L2, L3), BeiDou (B1, B2, B3), Galileo (E1, E5a, E5b, Alt-BOC, E6) | |
| Number of channels | 320 hardware channels | ||
| MEASUREMENT PERFORMANCE & ACCURACY2 | |||
| Time for initialisation | Typically 6 s | ||
| Real-time kinematic | |||
| (Compliant to ISO17123-8 standard) | RTK, Multifrequency | Hz 10 mm + 1 ppm / V 20 mm + 1 ppm | |
| Code differential | DGPS / RTCM | Typically 25 cm | |
| COMMUNICATIONS | |||
| Communication ports | Lemo | USB and RS232 serial | |
| Bluetooth® | Bluetooth® 4.1 class 1 & sealed and protected 8-pin Lemo combined USB / Serial232 port | ||
| Communication protocols | RTK data protocols | Leica, Leica4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM | |
| Network RTK | VRS, FKP, iMAX, MAC (RTCM SC104) | ||
| External data links | UMTS / LTE / CDMA phone modem | ||
| GENERAL | |||
| Field software and controller | Leica iCON site | Leica iCON CC70 / CC80 field controller | |
| User interface | Buttons and LEDs | On / Off button, 3 status LEDs | |
| Power management | Internal power supply | Exchangeable Li-Ion battery (2.6 Ah / 7.4 V) | |
| External power supply | Nominal 12 V DC, range 10.5 - 28 V DC | ||
| Operation time | 8 h GNSS 7 h receiving RTK data with CC70 modem |
||
| Weight and dimensions | Weight | 0.7 kg / 2.5 kg standard RTK rover setup on pole | |
| Diameter x Height | 186 mm x 71 mm | ||
| Environmental | Temperature | -40 to 65°C operating, -40 to 80°C storage | |
| Drop | Withstands topple over from a 2 m survey pole onto hard surfaces | ||
| Proof against water, sand and dust | IP66/IP68 (IEC60529 / MIL STD 810G CHG-1 510.6I / MIL STD 810G CHG-1 506.6 II / MIL STD 810 G CHG-1 512.6 I) | ||
| Vibration | Withstands vibration (ISO9022-36-05 / MIL STD 810G 514.6 Cat.24) | ||
| Humidity | 95% (ISO9022-13-06 / ISO9022-12-04 / MIL STD 810G CHG-1 507.6 II) | ||
| Functional shock | 40 g / 15 to 23 msec (MIL STD 810G 516.6 I) | ||
| LEICA iCON GPS 30 – GNSS RTK ROVER | |||
|---|---|---|---|
| SUPPORTED GNSS SYSTEMS | |||
| Dual-frequency / Multi frequency |  /
 |
||
| GPS / GLONASS / Galileo / BeiDou | / / /
|
||
| RTK PERFORMANCE | |||
| DGPS / RTCM, RTK Unlimited, Network RTK |
|
||
| POSITION UPDATE & DATA RECORDING | |||
| 5 Hz positioning |
|
||
| ADDITIONAL FEATURES | |||
| UMTS / CDMA phone modem |
|
||
= Standard
= Optional
| SKU | LeicaiCONgps30 |
|---|---|
| Brand | Leica Geosystems |
| Package Includes | N/A |
