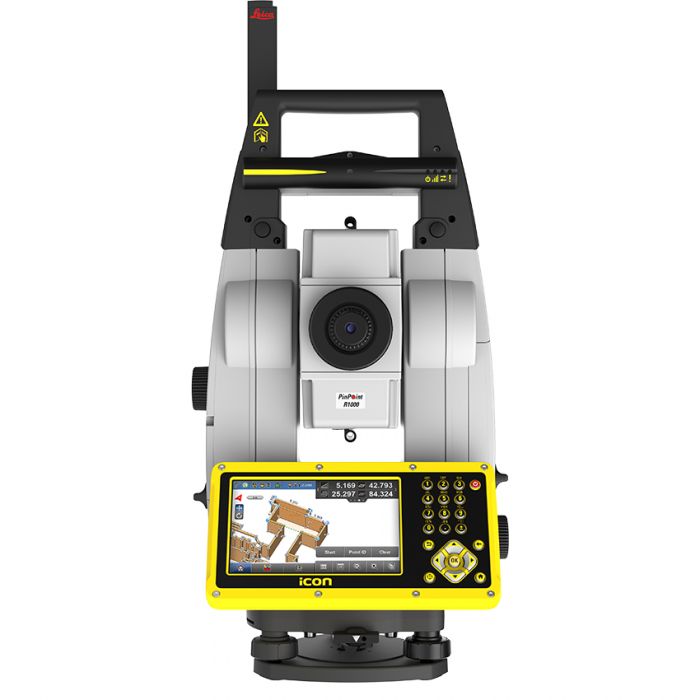

The Leica iCON iCR80 construction total station keeps its ‘eye’ on only one thing: the user’s target. Layout more points per day thanks to ATRplus, the most robust automated-aiming, lock and re-lock technology in the market. iCR80 is especially useful in congested sites with many distractions, such as reflections, machines and people moving around. Challenging and changing site conditions should not be an obstacle.

The iCON iCR80 allows users to:

• Layout lines for footings or chalk line for formwork on foundation
• Layout points on blinding layer, such as pipe insert or cut-outs before pouring concrete
• Layout true design objects based on federated and enriched models
• MEP layout of wall penetrations for pipes, hanger locations for HVAC and duct work, inserts and slits for sheet metal work
• Control a wide variety of construction machines, such as curb and gutter or milling machines, asphalt or concrete pavers, and graders or dozers

The iCON iCR80 guarantees layout efficiency with the most reliable, simple and automatic set up procedure, industry-leading prism lock, and flexible handling of fully rendered 3D design models in the field. This sophisticated, one-person total station offers an ‘all-in-one’ solution for every purpose – especially the difficult ones, allowing you to speed up your workflow.

The iCON iCR80 total station is fully compatible with:
• Leica iCON CC80 tablet with an enhanced version of the tailored iCON build construction field software
• Leica Infinity office software and Leica ConX for online sharing of data between the office and the site

The iCON iCR80 features:

• Faster prism search by patented technology, PowerSearch
• Stable data communication with long-range Bluetooth® (up to 400m)
• Easy hand-over control from pole to machine and vice versa
• ATRplus technology, maximising the total station’s ability to remain locked on your target for highest point-to-point layout speed
• “Tune out targets” feature to ignore other distractions in the field
• Fastest re-lock in case of interrupted line of sight

Ability to layout complex designs
Laying out intricate designs is a difficult task construction crews face every day. Complex geometries must be simplified by converting them to lines and rectangles, which means the staked point will not represent the true design when brought to the field. With iCON build Layout Objects app integrated into the solution, users can lay out straight from 3D models by selecting an object, like a column or pipe, simply by tapping on it in the controller and benefit from the flexible creation of layout work packages for effective work progress management. With the Leica iCR80 construction total station complex architecture can finally be completed with ease.

Never loose lock
The iCR80 comes with automated aiming ATRplus, which intelligently and automatically detects environmental conditions, such as light, dust, rain and other site conditions. The new ATRplus, lock and re-lock technology speeds aiming and following of targets and delivers accurate measurements independent of user aiming or site conditions. Even when used on busy construction sites, the down time resulting from loss of lock is minimal, speeding up significantly your layout task.

Automated set up
Stay confident and efficient with the most reliable, simple and automated set up routine. With no user interaction required, the intelligent Setup Pilot app orientates the total station with only the push of a button, allowing you to begin work almost immediately. The successful setup completion is visually communicated, indicating layout can begin.

Lowest total cost of ownership
Leica Geosystems construction total stations have a high value, giving you the lowest total cost of ownership. Its resilient hardware allows for longevity and reliability, giving you many years of rough usage in the most demanding environments. Its level of quality ensures your data remains accurate, lowers downtime and keeps your productivity high in all environments and conditions. Invest in the smarter total station solution and reap massive long-term rewards.

Leica iCON iCR70 & iCR80 Total Stations
		Leica iCON iCR70	Leica iCON iCR80
ANGULAR MEASUREMENT
Accuracy 1 Hz and V	Absolute, continuous, diametrical	2’’ (0.6 mgon) 5’’ (1.5 mgon)	1’’ (0.3 mgon) 2’’ (0.6 mgon) 5’’ (1.5 mgon)
DISTANCE MEASUREMENT
Range 2	Prism (GPR1, GPH1P) 3 Non-Prism / Any surface 4	1.5m to 3500m R500: 1.5m to >500m	1.5m to 3500m R30: 1.5m to 30m R1000: 1.5m to >1000m
Accuracy / Measurement time	Single (prism) 2,5 Single (any surface) 2,4,5	1mm + 1.5ppm / typically 2.4s 2mm + 2ppm / typically 3s	1mm + 1.5ppm / typically 2.4s 2mm + 2ppm / typically 3s6
Laser dot size	At 50m	8mm x 20mm
Measurement technology	System analyser	Coaxial, visible red laser
AUTOMATIC AIMING
Target aiming type		ATR	ATRplus
Target aiming range2 / Target locking range2	Circular prism (GPR1, GPH1P) 360° prism (GRZ4, MPR122)	1000m / 800m 800m / 600m	1500m / 1000m 1000m / 1000m
Accuracy 1,2 / Measurement time	ATR angle accuracy Hz, V	2’’ (0.6 mgon), 5’’ (1.5 mgon) / typically 3-4s	1’’ (0.3 mgon), 2’’ (0.6 mgon), 5’’ (1.5 mgon) / typically 3-4s
PRISM FAST SEARCH
Prism search type		SpeedSearch	PowerSearch
Range / Search time	360° prism (GRZ4, MPR122)	300m / typically 7s	300m / typically 5s
GUIDE LIGHT (EGL)
Working range / Accuracy		5–150m / typically 5cm @ 100m
GENERAL
Field software	Leica iCON field software	iCON Field Software running on field controller (CC80) connected via Radio or cable.	iCON Field Software running on the instrument
Machine Control capability	With optional Machine Control App	No	Yes
Display & keyboard		4 button keyboard with status LEDs	5“ (inch), WVGA, color, touch, face I standard /face II optional, 22 keys, illumination
Processor	TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™	Operating system – Windows EC7
Power management	Exchangeable Lithium-Ion battery	Operating time 8–10h	Operating time 6–8 h
Data storage	Internal memory Memory card	2 GB SD card 1 GB or 8 GB
Interfaces	RS232, USB, Bluetooth®, WLAN
Weight	Total station including battery	5.0kg	5.3kg
Environmental specifications	Working temperature range Dust / Water (IEC 60529) / Humidity	–20°C to +50°C IP55 / 95%, non-condensing
