Leica Lino ML180 Line Laser
Leica Lino ML180 Line Laser
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk

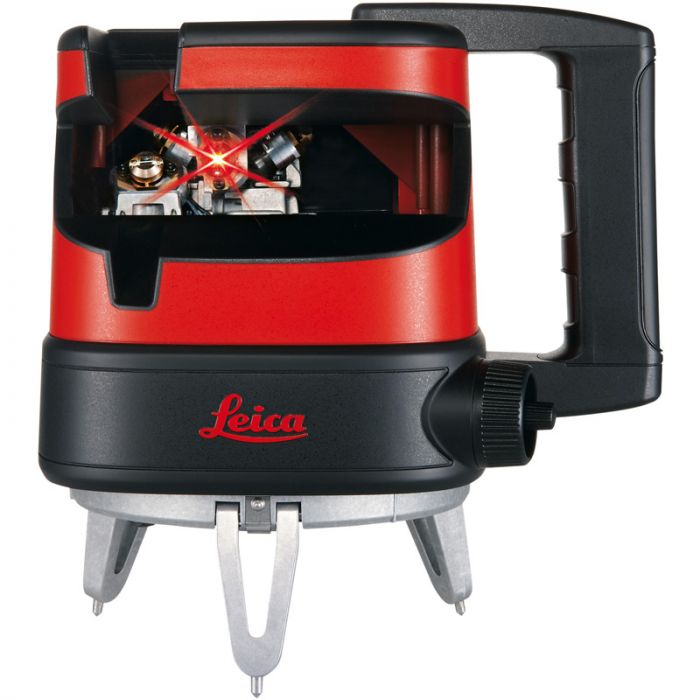

Adaptable for exterior and interior usages
With just a single button actions the ‘Smart Targeting’ function automatically aligns the laser to the location of the XCR Catch receiver which comes with a remote control, measuring with maximum precision and over distances up to 50 meters. For layout work of up to 100 meters and when precision is exceptionally important to avoid costly mistakes, the accurate electronic self-levelling system is a significant advantage. Thanks to its adaptable power supply the Leica Lino ML180 is always ready to use.
Meticulous layouts at extensive distances.
The accurate electronic self-levelling feature compensates automatically for the instrument being slightly out of level. A distinct advantage, especially over distances of up to 50 metres.
Flexible line laser
With 4 lines and a plumb point the Leica Lino ML180 covers all requirement for interior use. It can even be used for simpler projects outside.
Work without Downtime
The Leica Lino ML 180 can be use either a rechargeable battery pack or standard alkaline batteries. This provides increased flexibility and makes sure the Leica Lino ML180 is always ready. The instrument can also be used when being charged.
Key Features
- Single user operation
- Extreme levelling accuracy
- Accurate projection of 90° angles
- Automatic alignment of the laser to the XCR Catch
- Designed for everyday use on site – interior and exterior
- Remarkably quick and reliable levelling
- Quick set-up and ease of use

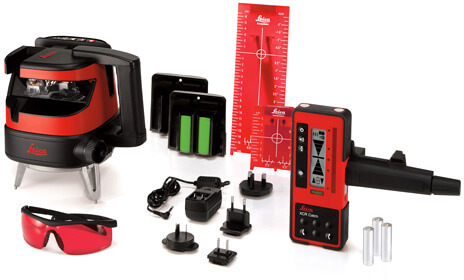

Price Includes
- Leica Lino ML180 multi line laser
- Leica XCR Catch with clamp
- 3 batteries type AA 1.5 for laser receiver
- Rechargeable NiMH battery pack
- International charging device with 4 plugs
- Battery holder for alkaline batteries
- Large red target plate
- Small red target plate
- Red laser glasses
| Range | up to 20 m |
| Range with XCR Catch* | up to 100 m |
| Remote control range | up to 50 m |
| Levelling accuracy | ± 0.7 mm @ 10 m |
| Self-levelling range | ± 5° |
| Self-levelling time | < 10 sec. |
| Laser | Lino ML 90: 3 lines, 1 point. |
| Battery type | rechargeable battery pack (NiMH) or alkaline D-cells, 2×1.5 V |
| Battery life | 12 h (rechargeable) |
| Protection class | IP 54 |
| Weight with batteries | 2,200 g |
| Tripod thread | 5/8” |
| Technical specifications | Leica Lino ML180 | Leica Lino ML90 |
| No of lines / points | 4 lines / 1 point | 3 lines/1 point |
| Directions | vertical front, left, right, horizontal, plumb down | vertical front, right, horizontal, plumb down |
| Levelling / line accuracy | ±0.7 mm @ 10 m (0.027 in @ 10m) | |
| 90° angular accuracy | ±0.2 mm / m | |
| Self-levelling range | ±5 ° | |
| Self-levelling time | < 10 s | |
| Range, visible* | 20 m (65.6 ft) | |
| Vertical adjustment over plumb point | automatically at ±4° vertical | |
| Motorized unit, works with XCR Catch for auto-alignment | yes, ready for remote control and Smart Targeting with XCR Catch | No remote control, No Smart targeting |
| Range of remote control / Smart Targeting with XCR Catch | 50 m (164 ft) | No remote control |
| Range with XCR Catch (line location) | 100 m (328 ft)** | RVL 100 receiver: 80m* |
| Out-of-level warning | yes, laser beam blinks | |
| Levelling system | Electronic levelling | Pendulum levelling |
| Pendulum lock | no, not necessary | |
| Laser type | < 1 mW, 635 nm, class 2 (IEC 60825-1:2008) | |
| Protection class | IP 54 | |
| Battery type | type D, 2 x 1.5V or rechargeable NiMH battery pack | |
| Operating time alkaline batteries | 10 h | 12 h |
| Operating time recharg. batteries | 12 h | 15 h |
| Charging during operation | yes is possible | |
| Low power alert | yes, red LED indication on keypad: blinking = power lasts up to 2 h permanent = power too low | |
| Dimensions ML device | 250 x 159 x 230 mm (9.9 x 6.3 x 9.1 inch) | |
| Weight with batteries | 2200 g (77oz) | |
| Weight with batteries | 2200 g (77oz) | |
| Operating temperature | -10 to + 45° C (14° F to + 113° F) | |
| Storage temperature | -25 to +70 ° C (-13° F to + 158° F) | |
| Fan angle vertical sides | 120 ° | |
| Fan angle vertical front | 120 ° | |
| Fan angle horizontal | 170 ° | |
| Laser line width @ 5 m distance | < 2 mm | |
| Tripod thread | 5/8 in | |
| Pulse power for receiver | yes, is permanently switched on | |
| * visible range is dependent from light conditions ** in straight line to the device |
||
| Technical specifications | Leica Lino XCR Catch |
| Range* for line location | 100 m (328 ft) |
| Range remote control / Smart Targeting | 50 m (164 ft) |
| Sensitivity for line location | ± 1mm, ± 3mm, ± 5mm |
| Length of detection window frontand backside | 86 mm (3.4 inch) |
| Protection Class | IP 65 |
| Operation Temperature | -10° to 50° C, (14° to + 122° F) |
| Storage Temperature | -25° to 70°C, (-13° F to + 158° F) |
| Battery type | 3 x 1.5V AA |
| Dimensions | 190 x 75 x 30 mm (7.5 x 3.0 x 1.2 inch) |
| Weight with batteries | 310g |
| * in straight line to the device | |
| SKU | 784438 |
|---|---|
| MPN | 784438 |
| Brand | Leica Geosystems |
