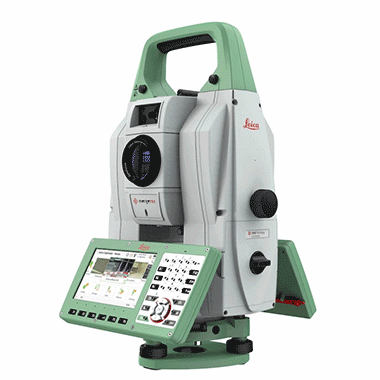

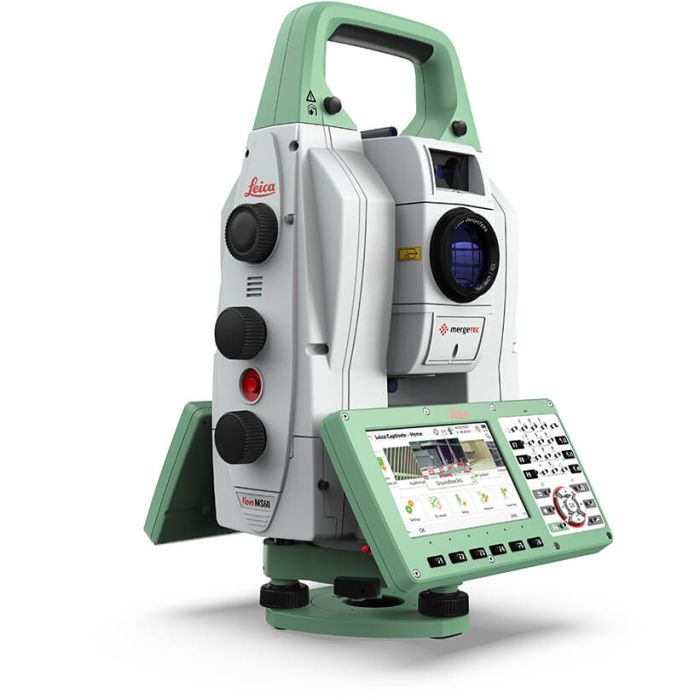

Leica Nova MS60 MultiStation
Leica Nova MS60 MultiStation
Be a MultiSurveyor
Your surveying skills have brought you your customers. Our instruments will help you keep and impress them. The new MS60 brings sensor fusion to the next level by combining upgraded faster 3D laser scanning capabilities, GNSS connectivity and digital imaging with a highest-end total station. Why not have it all?
Scan with up to 30.000 points per second
Take a step forward from classic detailing with a pole. With the new Leica Nova MS60’s scanning speed of up to 30.000 points per second, you will be able to deliver complex projects even before the deadline. Saving time means saving money. The quick distance and long-range reflectorless measurements, fast motorisation and reliable prism Search&Aim will additionally speed up your performance. Don’t compromise.

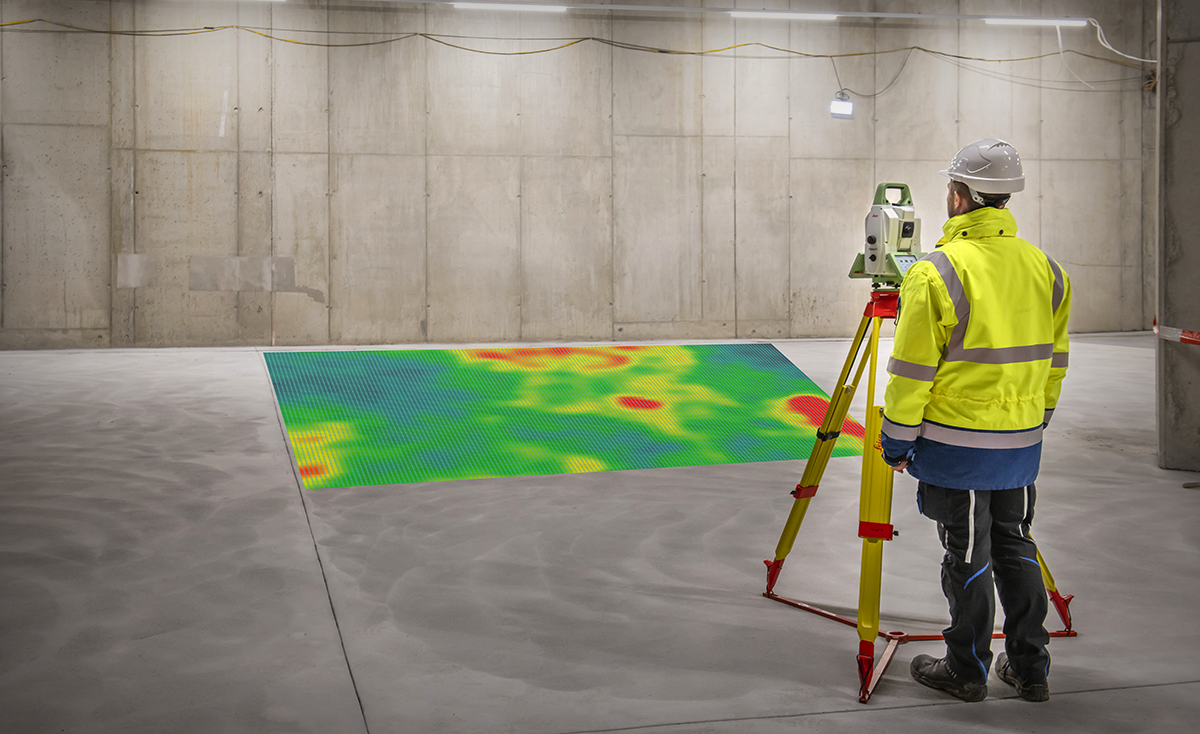

Inspect any surface
Do you keep returning to the office to process data and evaluate where remedial work is needed at the construction site? To see where shotcrete needs to be sprayed or concrete poured? With the Inspect Surface app, you can pick up speed by immediately pointing to areas in need of remedial work. Compare 3D visualisations of measurements to reference surfaces or even DXF/ICF models. Use your MS60 to its greatest extent – just decide on site.
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
The new version of Leica Nova MS60, the world’s first MultiStation, allows you to complete all surveying tasks with one instrument. It combines:
- Highest-end total station capabilities
- 3D laser scanning, enabling you to scan up to 30’000 points per second
- GNSS connectivity
- Digital imaging
The Leica NOVA MS60 MultiStation comes with Leica Captivate, an onboard software with easy to understand apps that meet all your surveying jobs. To increase productivity, benefit from the MS60’s Dynamic Lock feature as well as the newly added AutoHeight feature - which helps you set up even quicker with increased accuracy.
When you are out in the field, you need a fast and versatile instrument. Leica Nova MS60 is the world’s first MultiStation, helping you perform all required surveying tasks with just one instrument. The MS60 can be used as a total station without any compromise and offers the option to scan with a speed of up 30,000 points per second. Benefit from digital imaging and GNSS connectivity. Master your projects by performing point cloud analysis directly in the field – such as flatness analysis or as-built checks in the Inspect Surface app – and by automatically measuring your instrument height with the AutoHeightfeature. Seamlessly transfer your data with Leica Exchange into Leica Infinity to manage, process, analyse and quality check it.
MASTER YOUR PROJECTS WITH THE ULTIMATE ALL-ROUNDER
- Surfaces and volumes in construction: spoil heaps and stockpiles, DTM creation and checking surfaces, material thickness and ground levels
- Analysis of complex structures and objects within plant and utility projects: dimensional control, as-built and record-keeping
- Measuring buildings and structures: bridge condition/clearance analysis, BIM and as-built
- Façade, elevations and heritage work: the creation of traditional façade deliverables, 3D models and photographic documentation
- Traditional topographic surveys for surveying and mapping: the creation of traditional deliverables like 2D maps or 3D models
- Monitoring measurement and analysis of ground and structures: real-time or periodic measurement of bridges, dams, buildings and earth, ice and snow
| Leica Nova MS60 MultiStation | |||
|---|---|---|---|
| ANGLE MEASUREMENT | |||
| Accuracy 1 Hz and V | Absolute, continuous, quadruple | 1” (0.3 mgon) | |
| DISTANCE MEASUREMENT | |||
| Range 2 / Accuracy / Measurement time | Prism (GPR1, GPH1P) 2,3,5 | 1.5m to >10,000m / 1mm + 1.5ppm / typ. 1.5s | |
| Single (any surface) 2,4,5,6 | 1.5m to 2,000m / 2mm + 2ppm / typ. 1.5s | ||
| Measurement technology | Wave Form Digitising | Coaxial, visible red laser, dot size 8mm x 20mm @ 50m | |
| SCANNING | |||
| Scan Rate / Maximum Scan Speed | 30.000 Hz | 30,000 points per second | |
| Max. Range 7 / Range noise (1 sigma) | 30 kHz mode | 60m / 3mm @ 50m | |
| 8 kHz mode | 150m / 1.5mm @ 50m | ||
| 1 kHz mode | 300m / 1.0mm @ 50m | ||
| 1 Hz mode | 1,000m / 0.6mm @ 50m | ||
| Scan data | 3D point cloud including true colour, intensity and signal-to-noise data | ||
| Scan duration | Full dome scan 400gon x 155gon | Resolution 50mm @ 15m, duration 12mins | |
| Band Scan 400gon x 50gon | Resolution 12.5mm @ 50m, duration 45mins | ||
| IMAGING | |||
| Overview and telescope camera | Resolution / Frame rate | 5 MPx CMOS / up to 20 fps | |
| Field of view (overview / telescope) | 19.4° / 1.5° | ||
| MOTORISATION | |||
| Direct drives based on Piezo technology | Rotation speed / Time to change face | Maximum 400 gon (360°) per s / typically 2.9s | |
| AUTOMATIC AIMING - ATRplus | |||
| Target aiming range2 / Target locking range2 | Circular prism (GPR1, GPH1P) | 1,500m / 1,000m | |
| 360° prism (GRZ4, GRZ122) | 1,000m / 1,000m | ||
| Accuracy 1,2 / Measurement time | ATRplus angle accuracy Hz, V | 1” (0.3 mgon) / typically 2.5s | |
| POWERSEARCH | |||
| Range / Search time | 360° prism (GRZ4, GRZ122) | 300m / typically 5s | |
| GUIDE LIGHT (EGL) | |||
| Working range / Accuracy | 5 –150m / typically 5cm @ 100m | ||
| GENERAL | |||
| Operating system / Field software | Windows EC7 / Leica Captivate and its apps, supports onsite and realtime decisions | ||
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™- A9 MPCore™ | ||
| Autofocus telescope | Magnification / Focus Range | 30 x / 1.7m to infinity | |
| AutoHeight Module | Distance accuracy | 1.0 mm (1 Sigma) | |
| Distance range | 0.7 m to 2.7 m | ||
| Display and keyboard | 5“ (inch), WVGA, colour, touch, both faces | 37 keys, illumination | |
| Operation | 3x endless drives, 1x Servofocus drive, 2x Autofocus keys, user-definable SmartKey | ||
| Power management | Exchangeable Lithium-Ion battery | Up to 9h, internal charging capability | |
| Data storage | Internal memory / Memory card | 2 GB / SD card 1 GB or 8 GB | |
| Interfaces | RS232, USB, Bluetooth®, WLAN | ||
| Weight | MultiStation including battery | 7.7kg | |
| Environmental specifications | Working temperature range | –20°C to + 50°C | |
| Dust & Water (IEC 60529) / Blowing rain | IP65 / MIL-STD-810G, Methods 506.5 I and 507.5 | ||
| Humidity | 95%, non-condensing | ||
| Humidity | 95%, non-condensing | ||
|
1 - Standard deviation ISO 17123-3 2 - Overcast, no haze, visibility about 40 km, no heat shimmer 3 - 1.5m to 2000m for 360° prisms (GRZ4, GRZ122) 4 - Object in shade, sky overcast, Kodak Gray Card (90% reflective) 5 - Standard deviation ISO 17123-4 6 - Distance > 500m: Accuracy 4mm+2ppm, Measurement time typ. 6s 7 - Object in shade, sky overcast, uninterrupted visibility, static target object, Kodak Gray Card (90% reflective) |
|||
The new version of Leica Nova MS60, the world’s first MultiStation, allows you to complete all surveying tasks with one instrument. It combines:
- Highest-end total station capabilities
- 3D laser scanning, enabling you to scan up to 30’000 points per second
- GNSS connectivity
- Digital imaging
The Leica NOVA MS60 MultiStation comes with Leica Captivate, an onboard software with easy to understand apps that meet all your surveying jobs. To increase productivity, benefit from the MS60’s Dynamic Lock feature as well as the newly added AutoHeight feature - which helps you set up even quicker with increased accuracy.
When you are out in the field, you need a fast and versatile instrument. Leica Nova MS60 is the world’s first MultiStation, helping you perform all required surveying tasks with just one instrument. The MS60 can be used as a total station without any compromise and offers the option to scan with a speed of up 30,000 points per second. Benefit from digital imaging and GNSS connectivity. Master your projects by performing point cloud analysis directly in the field – such as flatness analysis or as-built checks in the Inspect Surface app – and by automatically measuring your instrument height with the AutoHeightfeature. Seamlessly transfer your data with Leica Exchange into Leica Infinity to manage, process, analyse and quality check it.
MASTER YOUR PROJECTS WITH THE ULTIMATE ALL-ROUNDER
- Surfaces and volumes in construction: spoil heaps and stockpiles, DTM creation and checking surfaces, material thickness and ground levels
- Analysis of complex structures and objects within plant and utility projects: dimensional control, as-built and record-keeping
- Measuring buildings and structures: bridge condition/clearance analysis, BIM and as-built
- Façade, elevations and heritage work: the creation of traditional façade deliverables, 3D models and photographic documentation
- Traditional topographic surveys for surveying and mapping: the creation of traditional deliverables like 2D maps or 3D models
- Monitoring measurement and analysis of ground and structures: real-time or periodic measurement of bridges, dams, buildings and earth, ice and snow
| Leica Nova MS60 MultiStation | |||
|---|---|---|---|
| ANGLE MEASUREMENT | |||
| Accuracy 1 Hz and V | Absolute, continuous, quadruple | 1” (0.3 mgon) | |
| DISTANCE MEASUREMENT | |||
| Range 2 / Accuracy / Measurement time | Prism (GPR1, GPH1P) 2,3,5 | 1.5m to >10,000m / 1mm + 1.5ppm / typ. 1.5s | |
| Single (any surface) 2,4,5,6 | 1.5m to 2,000m / 2mm + 2ppm / typ. 1.5s | ||
| Measurement technology | Wave Form Digitising | Coaxial, visible red laser, dot size 8mm x 20mm @ 50m | |
| SCANNING | |||
| Scan Rate / Maximum Scan Speed | 30.000 Hz | 30,000 points per second | |
| Max. Range 7 / Range noise (1 sigma) | 30 kHz mode | 60m / 3mm @ 50m | |
| 8 kHz mode | 150m / 1.5mm @ 50m | ||
| 1 kHz mode | 300m / 1.0mm @ 50m | ||
| 1 Hz mode | 1,000m / 0.6mm @ 50m | ||
| Scan data | 3D point cloud including true colour, intensity and signal-to-noise data | ||
| Scan duration | Full dome scan 400gon x 155gon | Resolution 50mm @ 15m, duration 12mins | |
| Band Scan 400gon x 50gon | Resolution 12.5mm @ 50m, duration 45mins | ||
| IMAGING | |||
| Overview and telescope camera | Resolution / Frame rate | 5 MPx CMOS / up to 20 fps | |
| Field of view (overview / telescope) | 19.4° / 1.5° | ||
| MOTORISATION | |||
| Direct drives based on Piezo technology | Rotation speed / Time to change face | Maximum 400 gon (360°) per s / typically 2.9s | |
| AUTOMATIC AIMING - ATRplus | |||
| Target aiming range2 / Target locking range2 | Circular prism (GPR1, GPH1P) | 1,500m / 1,000m | |
| 360° prism (GRZ4, GRZ122) | 1,000m / 1,000m | ||
| Accuracy 1,2 / Measurement time | ATRplus angle accuracy Hz, V | 1” (0.3 mgon) / typically 2.5s | |
| POWERSEARCH | |||
| Range / Search time | 360° prism (GRZ4, GRZ122) | 300m / typically 5s | |
| GUIDE LIGHT (EGL) | |||
| Working range / Accuracy | 5 –150m / typically 5cm @ 100m | ||
| GENERAL | |||
| Operating system / Field software | Windows EC7 / Leica Captivate and its apps, supports onsite and realtime decisions | ||
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™- A9 MPCore™ | ||
| Autofocus telescope | Magnification / Focus Range | 30 x / 1.7m to infinity | |
| AutoHeight Module | Distance accuracy | 1.0 mm (1 Sigma) | |
| Distance range | 0.7 m to 2.7 m | ||
| Display and keyboard | 5“ (inch), WVGA, colour, touch, both faces | 37 keys, illumination | |
| Operation | 3x endless drives, 1x Servofocus drive, 2x Autofocus keys, user-definable SmartKey | ||
| Power management | Exchangeable Lithium-Ion battery | Up to 9h, internal charging capability | |
| Data storage | Internal memory / Memory card | 2 GB / SD card 1 GB or 8 GB | |
| Interfaces | RS232, USB, Bluetooth®, WLAN | ||
| Weight | MultiStation including battery | 7.7kg | |
| Environmental specifications | Working temperature range | –20°C to + 50°C | |
| Dust & Water (IEC 60529) / Blowing rain | IP65 / MIL-STD-810G, Methods 506.5 I and 507.5 | ||
| Humidity | 95%, non-condensing | ||
| Humidity | 95%, non-condensing | ||
|
1 - Standard deviation ISO 17123-3 2 - Overcast, no haze, visibility about 40 km, no heat shimmer 3 - 1.5m to 2000m for 360° prisms (GRZ4, GRZ122) 4 - Object in shade, sky overcast, Kodak Gray Card (90% reflective) 5 - Standard deviation ISO 17123-4 6 - Distance > 500m: Accuracy 4mm+2ppm, Measurement time typ. 6s 7 - Object in shade, sky overcast, uninterrupted visibility, static target object, Kodak Gray Card (90% reflective) |
|||
