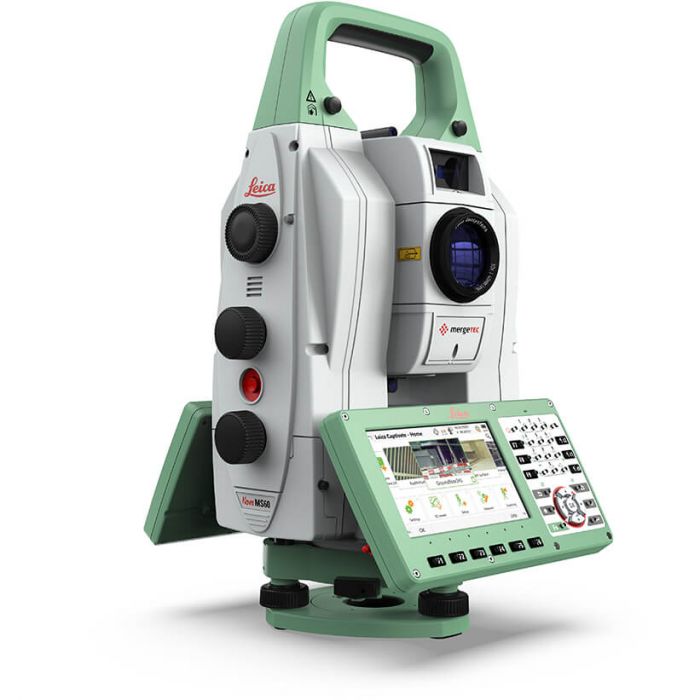

Leica Nova TM60 Monitoring Station
Leica Nova TM60 Monitoring Station
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Leica Geosystems’ new monitoring solution comes with a strong promise: real-time information and reports you can always rely on, helping you make informed decisions in time and on time. Be it settling, flexing, shifting, sliding or any other change of state – you will have it under control 24 hours a day, seven days a week. The robust, precise and enduring TM60 comes with the world’s longest ATRplus range, half-second automatic aiming accuracy, advanced imaging and the longest continuous operation. Combined with the Leica GeoMoS monitoring solution, you will be able to react to complex demands of any project – be it continuous or periodic. The decision is easy: maximum safety, minimum risk, half-second at a time.

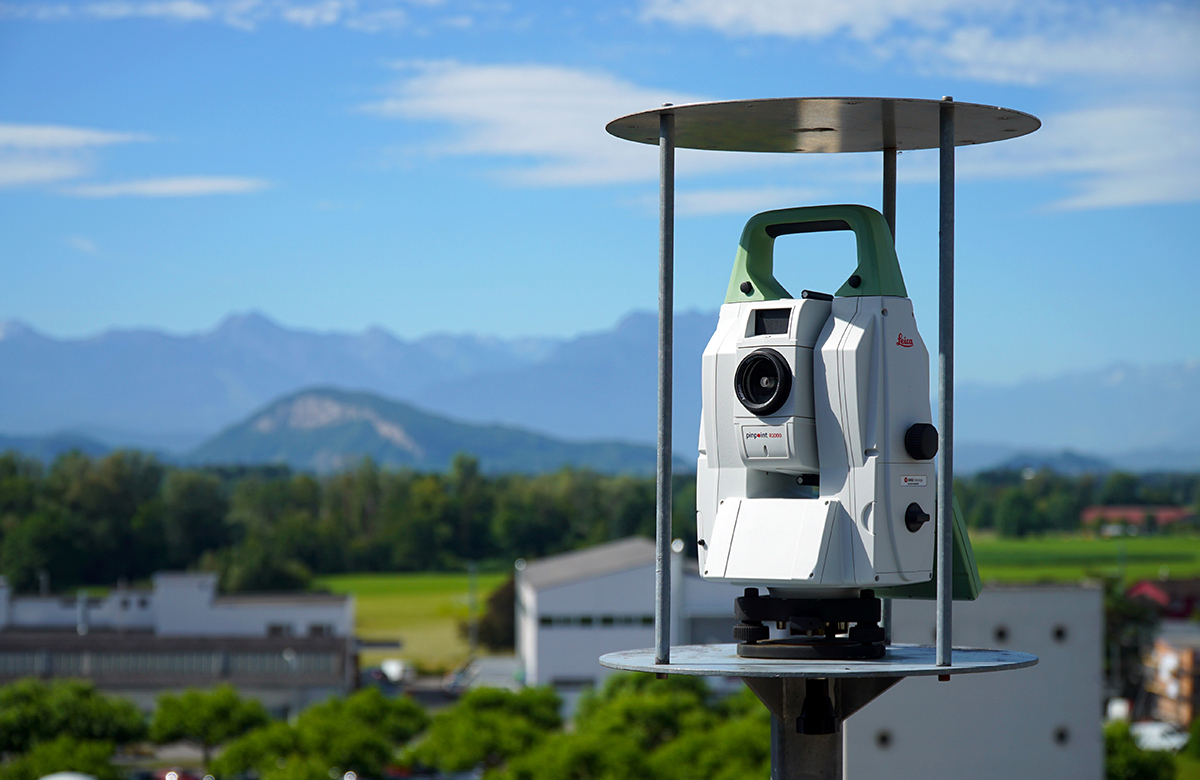

- Permanent monitoring (24/7): remote operation, continuous monitoring, real-time measurement data, robust against various environmental conditions.
- Campaign monitoring (periodical): flexible instrument setup, automated measurements, Leica Captivate field software, dedicated monitoring app, connectivity to cloud services.
- Buildings and structures: monitoring of buildings, skyscrapers, industrial and sports facilities, offshore and underground structures.
- Transportation infrastructure: monitoring of tunnels, railway, bridges, roads & highways, airports, ports & canals.
- Environmental monitoring: monitoring of landslides, rock falls, subsidence.
- Energy infrastructure: monitoring of dams, oil & gas, nuclear facilities, pipelines power plants.
Autonomous monitoring sensor control, ensuring a continuous dataflow.
| ANGLE MEASUREMENT | ||
| Accuracy1 Hz and V | Absolute, continuous, quadruple | 0.5” (0.15 mgon) or 1” (0.3 mgon) |
| DISTANCE MEASUREMENT | ||
| Range2 | Prism (GPR1, GPH1P) 3 | 0.9 m to 3,500 m |
| Non-Prism / Any surface 4 | 0.9 m to >1,000 m | |
| Accuracy / Measurement time | Single (prism) 2,5 | 0.6 mm + 1 ppm / typ. 2.4 s |
| Single (any surface) 2,4,5,6 | 2 mm + 2 ppm / typ. 2 s 9 | |
| Laser dot size | At 50 m | 8 mm x 20 mm |
| Measurement technology | System analyser | Coaxial, visible red laser |
| IMAGING | ||
| Overview and telescope camera | Sensor | 5 megapixel CMOS sensor |
| Field of view (overview / telescope) | 19.4° / 1.5° | |
| Frame rate | Up to 20 frames per second | |
| MOTORISATION | ||
| Direct drives based on Piezo technology | Rotation speed / Time to change face | Maximum 200 gon (180°) per s / typically 2.9 s |
| AUTOMATIC AIMING - LONG RANGE ATRplus | ||
| Target aiming range 2 | Circular prism (GPR1, GPH1P) | 3,000 m |
| 360° prism (GRZ4, GRZ122) | 1,500 m | |
| Accuracy 1,2 / Measurement time | ATRplus angle accuracy Hz, V | 0.5” (0.15 mgon) or 1” (0.3 mgon) / typically 3-4 s |
| GENERAL | ||
| Operating System / Field Software | Windows EC7 / Leica Captivate with apps | |
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™- A9 MPCore™ | |
| Autofocus8 telescope | Magnification / Focus Range | 30 x / 1.7m to infinity |
| Display and keyboard | 5‘‘ (inch), WVGA, colour, touch, Face 1 standard, Face 2 optional | 37 keys, illumination |
| Operation | 3x endless drives, 1x Servofocus drive, 2x Autofocus keys 8, user-definable SmartKey | |
| Power management | Exchangeable Lithium-Ion battery with internal charging capability | Operating Time up to 9 h |
| Data storage | Internal memory | 2 GB |
| Memory card | SD card 1 GB or 8 GB | |
| Interfaces | RS232, USB, Bluetooth®, WLAN | |
| Weight | Total station including battery | 7.2 kg |
| Environmental specifications | Working temperature range | –20°C to +50°C |
| Dust & Water (IEC 60529) / Blowing rain | IP65 / MIL-STD-810G, Method 506.5-I | |
| Humidity | 95%, non-condensing | |
| SKU | Leica Nova TM60 |
|---|---|
| Brand | Leica Geosystems |
| Package Includes | N/A |
