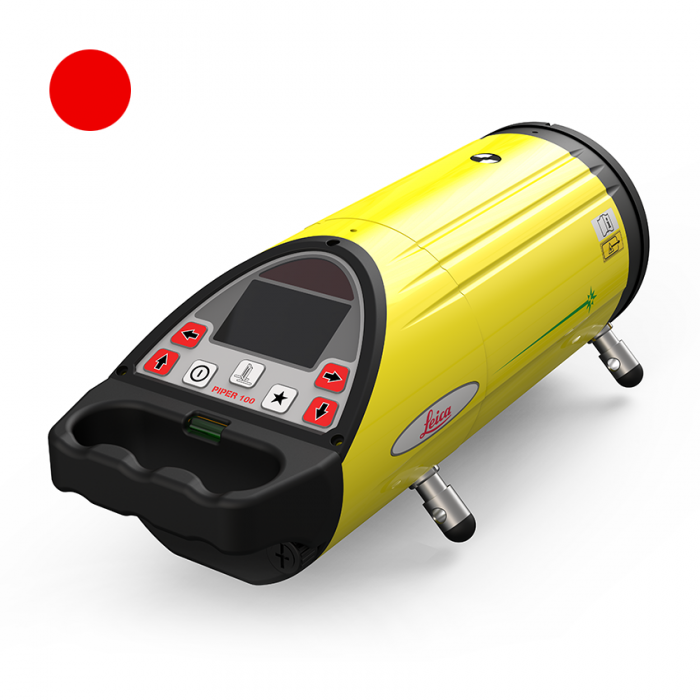

Leica Piper 100 Pipe Laser
Leica Piper 100 Pipe Laser
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
Solid performance in the pipe, over the top or in the manhole. The Leica Piper series helps you to work with confidence having the perfect instrument for your applicaton and need. Built with a rugged aluminium housing, these pipe lasers perform powerfully even in tough jobsite conditions.
In addition, the Piper Green series offers you four times better visibility of the laser providing you higher leveling accuracy. This allows you to work at longer distances from the instrument position even in sunny conditions. Often used in water and sewage the green series improves the usability also in those use cases.
- Compact and powerful:
The pipe laser that fits inside a 100 mm/4 in pipe. - Automatic grade compensation:
With the housing rolled up to ± 3°, the Piper will compensate and correct for the grade errors. - Heavy duty trivet:
With easy grip handle, heavy base and clear markings on the pole to adjust and set the height. - Multi-function remote:
Works up to 150 m (500 ft) for line control and other features. - Green beam:
Four times better visibility of the laser for longer measurement distance and higher levelling accuracy
Package Includes
- Leica Piper 100
- Rugged carrying case
- Remote control
- Target assembly
- Li-Ion battery
- Charger with AC and auto adapter
| Leica Piper | ||||||
| Leica Piper 100 | Leica Piper 200 | |||||
| 3R | 2M | 3R GREEN | 2M GREEN | 3R | 3R GREEN | |
| Laser beam color | 635nm | 520nm | 635nm | 520nm | ||
| Laser class | 3R | 2M | 3R | 2M | 3R | 3R |
| Max. average radiant power | 4.75mW | 1.2mW | 4.8mW | 1.2mW | 4.75mW | 4.8mW |
| Working range | <200m/650 ft | |||||
| Grade range | -10% to +25% | |||||
| Self-levelling range | -15% to +30% | |||||
| Line movement | 6m at 30m / 20ft at 100ft | |||||
| Battery* | Li-Ion, up to 40h | |||||
| Charging time* | 4h | |||||
| Operating temperature | -20°C to +50°C / -4°F to +122°F | |||||
| Dimensions (diameter x length) | 96mm x 267mm / 3.9“ x 10.5“ | |||||
| Weight | 2.0Kg / 4.4lbs | |||||
| Housing | Cast aluminium | |||||
| Protection class | IPx8 | |||||
| Wireless remote distance | Front 150m / 500ft | |||||
| Wireless remote distance | Back 10m / 35ft | |||||
| Self levelling accuracy** | +/-1.5mm at 30m / +/- 1/16“ at 100ft | |||||
| Auto targeting | No | Yes | ||||
| SKU | 748773|746157|725858|733270|799185 |
|---|---|
| MPN | 748773 |
| Brand | Leica Geosystems |
| Package Includes | Leica Piper 100 Laser with Carrying Case & User Manual. |
