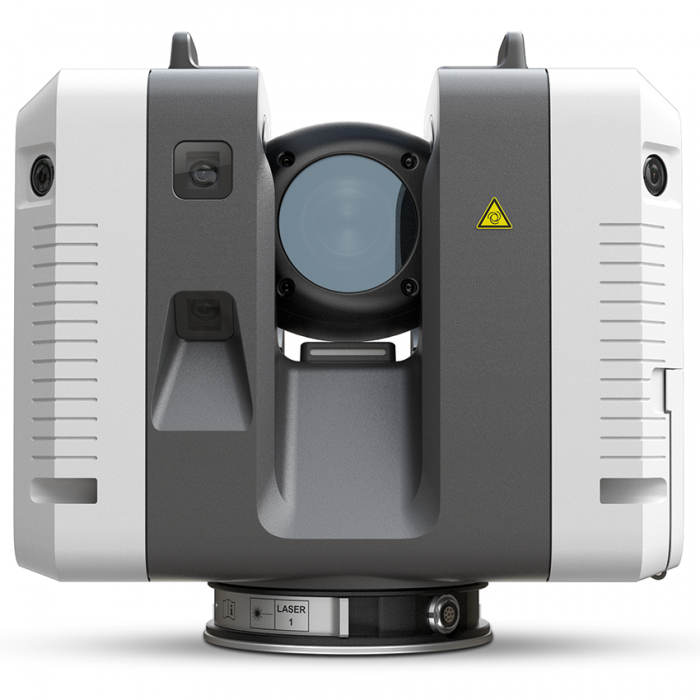

Leica RTC360 Laser Scanner
Leica RTC360 Laser Scanner
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Fast, agile and precise 3D reality capture solution
FAST
The Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of colored 3D point clouds can be completed in under 2 minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximize productivity.
Agile
Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use one-button operation makes for fast, hassle-free scanning.
Precise
Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in a range of applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site.
Read the blog:
Leica RTC360 Laser Scanner. Who’s it for and what can it do.
Kit includes
- Leica RTC360 Laser Scanner
- Transport Container
- GEB361 Lithium-Ion Battery
- GKL341 Multichanger Prof 5000
- 256gb USB Flash Drive
- Rain Cover
- System USB Card
- GST80 Lightweight Tripod
- GVP730 Backpack
- GAD121 Tribrach Adapter
- GAD122 Adapter
- RTC360 Quick Guide
- 1 Year Basic CCP
Leica-RTC360-Datasheet.pdf Leica-Cyclone-FIELD-360-Datasheet.pdf
| Leica RTC360 Product Specifications | |
| 3D Laser Scanner | High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real time registration |
| Data acquisition | < 2 min for complete full dome scan and spherical HDR image at 6mm @ 10m resolution |
| Real time registration | Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit |
| Double scan | Automatic removal of moving objects |
| Distance measurement | High-speed, high dynamic time of flight enhanced by Waveform Digitizing (WFD) technology |
| Laser Class | 1 (in accordance with IEC 60825-1:2014), 1550nm (invisible) |
| Field of view | 360° (horizontal) / 300° (vertical) |
| Range | Min. 0.5 - up to 130 m |
| Speed | Up to 2‘000‘000 pts / sec |
| Resolution | 3 user selectable settings (3/6/12mm @ 10m) |
| Accuracy * | Angular accuracy 18” Range accuracy 1.0 mm + 10 ppm 3D point accuracy 1.9 mm @ 10 m 2.9 mm @ 20 m 5.3 mm @ 40 m |
| Range noise * ** | 0.4 mm @ 10 m, 0.5 mm @ 20 m |
| Camera | 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° x 300° spherical image |
| Speed | 1 minute for full spherical HDR image at any light condition |
| HDR | Automatic, 5 brackets |
| Visual Inertial System | Video enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time |
| Tilt | IMU based, Accuracy: 3‘ for any tilt |
| Additional sensors | Altimeter, Compass, GNSS |
| On scanner | Touch-screen control with finger touch, full color WVGA graphic display 480 x 800 pixels |
| Mobile devices | Leica Cyclone FIELD 360 app for iPad or Android tablets including: - Remote control of scan functions - 2D & 3D data viewing - Tagging - Automatic alignment of scans |
| Wireless | Integrated wireless LAN (802.11 b/g/n) |
| Data storage | Leica MS256, 256GB exchangeable USB 3.0 flash drive |
| Housing | Aluminium frame and sidecovers |
| Dimensions | 120mm x 240mm x 230mm / 4.7‘‘ x 9.4‘‘ x 9.1 |
| Weight | 5.35 kg / 11.7 lbs, nominal (w/o batteries) |
| Mounting mechanism | Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter / survey tribrach adapter available |
| Internal battery | 2 x Leica GEB361 internal, rechargeable Li-Ion batteries. Duration: Typically up to 4 hours Weight: 340 g per battery |
| External | Leica GEV282 AC adapter |
| Operating temperature | 5° to +40° C |
| Storage temperature | 40° to +70° C |
| Operating low temperatures **** | 10° to +40°C |
| Dust/Humidity *** | Solid particle/liquid ingress protection IP54 |
All specifications are subject to change without notice.
All accuracy specifications are on a level of confidence of 68% according to the Guide of the Expression of Uncertainty in Measurement (JCGM100:2008) unless otherwise noted.
* At 89% albedo.
** For single shot measurements
*** For upright and upside down setups with a +/- 15° inclination
**** Extended low temperature operation is possible to -10°C if internal temperature is at or above -5°C when powered on. For extended low temperature measurement, it is recommended that QA procedures are followed.
Scanner: Laser class 1 in accordance with IEC60825:2014
| SKU | LeicaRTC360 |
|---|---|
| MPN | 6012673 |
| Brand | Leica Geosystems |
| Package Includes | N/A |
