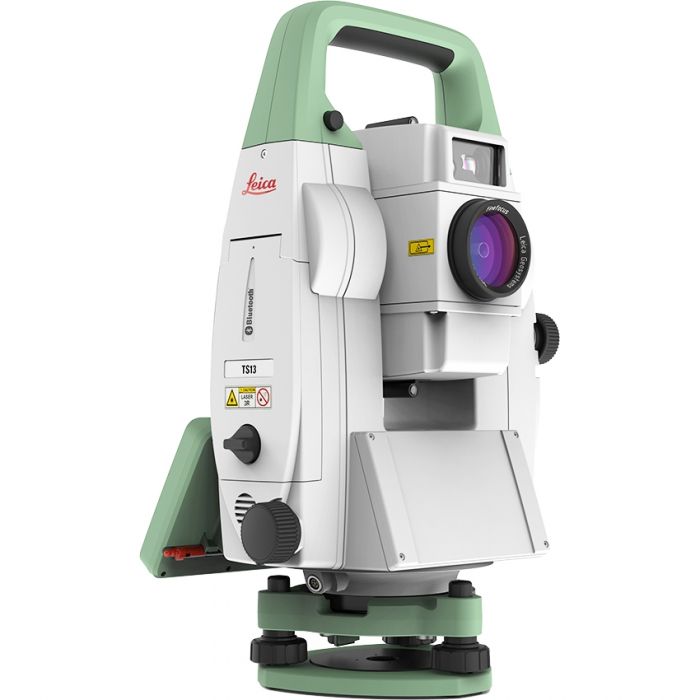

Leica TS13 Mid-Range Robotic Total Station
Leica TS13 Mid-Range Robotic Total Station
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
A new standard for efficient surveying
The Leica TS13 total station provides a fast, reliable and efficient solution tailored to the users needs to measure and layout more points. Equipped with Automatic Target Recognition (ATR) technology and optionally with target lock and SpeedSearch to find and lock on to prisms quickly, it provides accurate measuring to targets. Combined with Leica Captivate field software, the TS13 offers a simple and productive way of coding and line work.
The TS13 works with the revolutionary Leica Captivate field software, turning complex data into the most realistic and workable 3D models. It spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both. A smooth data transfer ensures the project stays on track. Captivate and Leica Infinity office software work in conjunction to join previous survey data and edit projects faster and more efficiently.
| Leica TS13 Total Station | |||
|

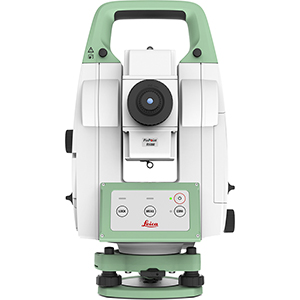

Basic variant
|
ANGULAR MEASUREMENT | ||
| Accuracy 1 Hz and V | Absolute, continuous, diametrical | 1" (0.3 mgon), 2" (0.6 mgon), 3" (1 mgon), 5" (1.5 mgon) | |
| DISTANCE MEASUREMENT | |||
| Range 2 | Prism (GPR1, GPH1P) 3 Non-Prism / Any surface 4 |
1.5 m to 3500 m R500: 1.5 m to >500 m, R1000: 1.5 m to >1000 m |
|
| Accuracy / Measurement time | Single (prism) 2,5 Single (any surface) 2,4,5,6 |
1 mm + 1.5 ppm / Typically 2.4 s 2 mm + 2 ppm / Typically 3 s |
|
| Laser dot size | At 50 m | 8 mm x 20 mm | |
| Measurement technology | System analyser | Coaxial, visible red laser | |
| AUTOMATIC AIMING - ATR | |||
| Target aiming range2 | Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) |
1000 m 800 m |
|
| Accuracy 1,2 / Measurement time | ATR angle accuracy Hz, V | 1" (0.3 mgon), 2" (0.6 mgon), 3" (1 mgon), 5" (1.5 mgon) / Typically 3-4 s |
|
| GUIDE LIGHT (EGL) | |||
| Working range / Accuracy | 5 - 150 m / Typically 5 cm @ 100 m | ||
| GENERAL | |||
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™ |
Operating system – Windows® EC7 | |
| Power management | Exchangeable Lithium-Ion battery | Operating time 8 - 10 h | |
| Field software | Leica Captivate incl. apps | Running on field controller (Leica CS20) | |
| Data storage | Internal memory 2 GB SD card 1 GB or 8 GB |
On field controller (Leica CS20) | |
| Interfaces | RS232, USB, Bluetooth®, WLAN | ||
| Weight | Total station including battery | 5.0 kg | |
| Environmental specifications | Working temperature range Dust / Water (IEC 60529) / Humidity |
–20°C to +50°C IP55 / 95%, non-condensing |
|
| Keyboard | Face I standard | 4 button keyboard with status LEDs | |
|
Upgrades
|

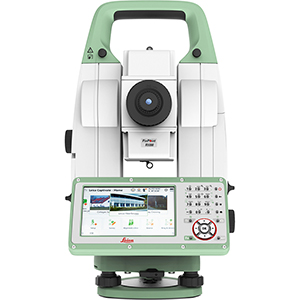

KEYBOARD DISPLAY UNIT (Optional) | ||
| Keyboard with display | Face I and face II optional | 5” (inch), WVGA, colour, touch 25 keys, illumination |
|
| Power management | Exchangeable Lithium-Ion battery | Operating time 6 - 8 h | |
| Field software | Leica Captivate including apps | Running on TS13 instrument | |
| Data storage | Internal memory 2 GB SD card 1 GB or 8 GB |
On TS13 instrument | |
| Weight | Total station including battery | 5.3 kg | |
| TARGET LOCK (Optional) | |||
| Target locking range2 | Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) |
800 m 600 m |
|
| ROBOTIC SURVEYING including PRISM FAST SEARCH (Optional) | |||
| SpeedSearch range / Search time | 360° prism (GRZ4, GRZ122) | 300 m / Typically 7 s | |
| Robotic range with long-range Bluetooth® 8 |
To CS20 internal long-range Bluetooth® To CTR20 expansion pack |
500 m 1000 m |
|
| SKU | LeicaTS13 |
|---|---|
| Brand | Leica Geosystems |
| Package Includes | N/A |
