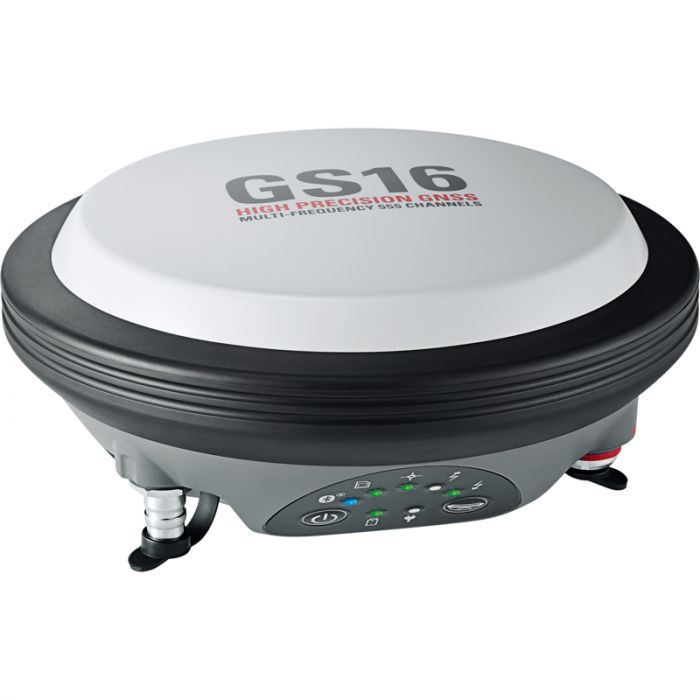

Leica Viva GS16 GNSS Smart Antenna
Leica Viva GS16 GNSS Smart Antenna
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
SCCS has one of the UK’s largest fleets of surveying equipment for hire, providing advanced solutions for positioning, measuring, scanning, and monitoring. Learn more about the benefits of hire.
Why choose hire?
- Cost-effective
- Access to the latest technology
- Full technical support and advice
- Try before you buy
- Fast delivery and collection
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
The Leica Viva GS16 is the most powerful and compact, self-learning GNSS smart antenna. Operating with the principal RTK technology, the Viva GS16 meets the uppermost standards in measurement superiority with SmartLink and RTKplus. The increasing number of signals from an expanding satellite constellation requires a GNSS receiver to be quicker and smarter. RTKplus intelligently adjusts to altering conditions by choosing the optimum signals to provide the most accurate positions. Work more efficiently and in more demanding environments than ever before.
Enjoy continuous precise positioning even if your local correction service is not available due to obstacles or shortage of cellular coverage with the global SmartLink service.
Engaging software
The Leica Viva GS16 GNSS smart antenna comes with the ground-breaking Captivate software, turning complicated data into the most realistic and workable 3D models. With easy-to-use applications and recognised touch technology, all forms of design and measured data can be viewed in all dimensions. Leica Captivate spans applications and industries with hardly any more than a swipe, regardless of whether you work with total stations, GNSS or both.
Infinite possibilities
While Captivate captures and models data in the field, Leica Infinity software processes the information back in the office. A smooth data transfer ensures the project stays on track. Captivate and Infinity work in conjunction to join previous survey data and edit projects faster and more efficiently.
Powerful handheld devices
The Leica CS35 tablet and CS20 controller provide the essential control, convenience and absolute mobility. Touch-screen technology allows for comfortable and fast data processing while an impressive 3D view transforms your experience.
Leica Infinity imports data from your GNSS, total station and level instruments for one complete and precise result. Processing has never been made easier when all your instruments work in together to produce accurate and actionable information.
RTKplus
- 555 channels for more signals, faster acquisition and improved sensitivity
- Intelligent management of multi-frequency, multi-constellation signals
- Intelligent selection to automatically reject reflected or noisy signals
SMARTCHECK
- Unique RTK technology provides continuous checks to guarantee correct results
- Initialisation within seconds
- Complete reliability
SMARTLINK
- Achieve centimetre accurate positioning worldwide - perfect when working in remote areas around the globe
- No RTK base station or RTK network required, correction data is continuously transmitted by satellite delivering global coverage
- Bridging RTK outages for uninterrupted centimetre Positioning
BUILT FOR THE MOST DEMANDING ENVIRONMENTS
- IP68 protection
- Built for extreme temperatures of -40°C to +65°C
- Fulfils toughest standards throughout the complete product lifetime
ERGONOMICS
- Integrated mobile phone and UHF radio RTK devices
- Compact housing
- Lightweight
ONLINE SERVICES
- SmartNet Satellite Positioning - your No.1 partner for network RTK
- Leica Active Assist - the next level in support
- Leica Exchange - transfer data easily, quickly and safely
Leica Viva GS16 Datasheet
| GNSS TECHNOLOGY | ||
| Self-learning GNSS | Leica RTKplus SmartLink (worldwide correction service) SmartLink fill (worldwide correction service) |
Adaptive on-the-fly satellite selection Remote precise point positioning (3 cm 2D)1 Initial convergence to full accuracy 20 - 40 min, Re-convergence < 1 min Bridging of RTK outages up to 10 min (3 cm 2D)1 |
| Leica SmartCheck | Continuous check of RTK solution | Reliability 99.99% |
| Signal tracking | GPS (L1, L2, L2C, L5), Glonass (L1, L2), BeiDou (B1, B2, B32), Galileo (E1, E5a, E5b, Alt-BOC, E62), QZSS3, SBAS (WAAS, EGNOS, MSAS, GAGAN), L-band | |
| Number of channels | 555 (more signals, fast acquisition, high sensitivity) | |
| MEASUREMENT PERFORMANCE & ACCURACY | ||
| Time for initialisation | Typically 4 s | |
| Real-time kinematic (Compliant to ISO17123-8 standard) |
Single baseline Network RTK |
Hz 8 mm + 1 ppm / V 15 mm + 1 ppm Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm |
| Post processing | Static (phase) with long observations Static and rapid static (phase) |
Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm |
| Code differential | DGPS / RTCM | Typically 25 cm |
| COMMUNICATIONS | ||
| Communication ports | Lemo Bluetooth® |
USB and RS232 serial Bluetooth® v2.00 + EDR, class 2 |
| Communication protocols | RTK data protocols NMEA output Network RTK |
Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM NMEA 0183 V 4.00 and Leica proprietary VRS, FKP, iMAX, MAC (RTCM SC 104) |
| Built-in data links | 3.75G GSM / UMTS / CDMA phone modem Radio modem |
Fully integrated, internal antenna Fully integrated, receive and transmit, external antenna 403 - 470 MHz, 1 W output power, up to 28800 bps over air |
| External data links | GSM / GPRS / UMTS / CDMA and UHF / VHF modem | |
| GENERAL | ||
| Field controller and software | Leica Captivate software | Leica CS20 field controller, Leica CS35 tablet |
| User interface | Buttons and LEDs Web server |
On / Off and Function button, 7 status LEDs Full status information and configuration options |
| Data recording | Storage Data type and recording rate |
Removable microSD card, 8 GB Leica GNSS raw data and RINEX data at up to 20 Hz |
| Power management | Internal power supply External power supply Operation time4 |
Exchangeable Li-Ion battery (2.6 Ah / 7.4 V) Nominal 12 V DC, range 10.5 - 28 V DC 7 h receiving (Rx) data with internal radio, 5 h transmitting (Tx) data with internal radio, 6 h Rx / Tx data with internal phone modem |
| Weight and dimensions | Weight Diameter x Height |
0.93 kg / 2.90 kg standard RTK rover setup on pole 190 mm x 90 mm |
| Environmental | Temperature | -40 to 65°C operating, -40 to 80°C storage |
| Drop | Withstands topple over from a 2 m survey pole onto hard surfaces | |
| Proof against water, sand and dust | IP68 (IEC60529 / MIL STD 810G 506.5 I / MIL STD 810G 510.5 I / MIL STD 810G 512.5 I) | |
| Vibration | Withstands strong vibration (ISO9022-36-08 / MIL STD 810G 514.6 Cat.24) | |
| Humidity | 100% (ISO9022-13-06 / ISO9022-12-04 / MIL STD 810G 507.5 I) | |
| Functional shock | 40 g / 15 to 23 msec (MIL STD 810G 516.6 I) | |
| SKU | Leica Viva GS16 |
|---|---|
| Brand | Leica Geosystems |
