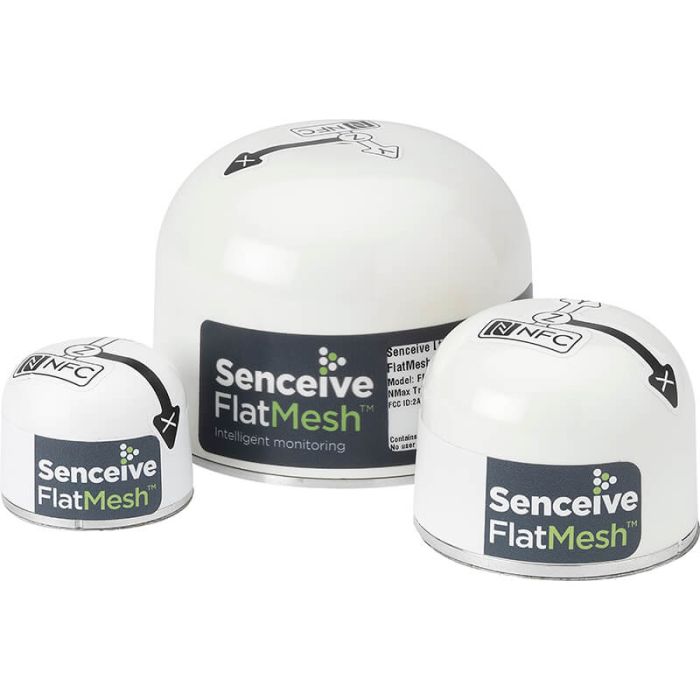

Includes the Nano and NanoPlus Triaxial Tilt Sensor Nodes
The Nano triaxial tilt sensor node range has its own unique miniature form and is built to deliver precise, reliable tilt monitoring in demanding applications such as rail, construction and mining. It is easy to deploy and has no external aerial and a durable shell (IP68 rated) that can withstand the most challenging environments. The Nano’s discreet form and wide range of simple fixings allow for extremely quick installation to any surface using glue, screw or magnetic mounting. Its innovative design allows the Nano tilt monitor to be installed in any orientation making it ideal for wireless tilt monitoring of tunnels, bridges, buildings and retaining walls.
With a maximum reporting frequency of two seconds, the Nano is ideal for applications where a high reporting rate is needed. It has a resolution of 0.0001° (0.0018 mm/m), and repeatability of ±0.0005° (±0.009 mm/m). The Nano tilt monitoring system offers unrivalled specifications and a battery life of up to five years, making it the future of wireless tilt sensing.
The Nano range uses the same core platform as our other tilt sensors, so it can deliver a similar level of performance and reliability, all in a much smaller and more robust enclosure.
It has been successfully used in many applications, including:
- Tunnel distortion
- Tunnel heave/settlement
- Embankment slippage
- Structural movement
- Rail track heave/settlement
- Rail trackbed cant and twist
Features
- Integrated triaxial tilt sensor
- Extremely low noise performance
- Low profile and discreet
- Resolution of 0.0001° (0.0018 mm/m) and repeatability of ±0.0005° (±0.009 mm/m)
- Operational in any orientation
- Integrated long life battery
- Integrated temperature sensor
- Versatile mounting options
- Waterproof to IP67 / IP68 / IP69K
- NFC capability, enabling on the spot adjustments to the node
- “Sleep mode” functionality
FlatMesh Nano Sensor Node FM3NT-10
Physical Specifications
| Diameter | 40 mm |
| Height | 30 mm |
| Total Mass | 40 g |
| Housing Material | PVC and Aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP67 / IP68 at 2m for 24 hours |
| Mounting Options | Magnetic, screws, gluing |
| Operating Temperature Range | -40°C to +85°C |
Tilt Sensor Specifications
| Resolution | 0.0001° (0.00175 mm/m) |
| Repeatability | ±0.0005° (±0.0087 mm/m) |
| Range | ±90° |
FlatMesh NanoPlus Sensor Node FM3NT-30
Physical Specifications
| Diameter | 58 mm |
| Height | 45 mm |
| Total Mass | 110 g |
| Housing Material | Polycarbonate and Aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP67 / IP68 at 2m 24 hours |
| Mounting Options | Magnetic, screws, gluing |
| Operating Temperature Range | -40°C to +85°C |
Tilt Sensor Specifications
| Resolution | 0.0001° (0.00175 mm/m) |
| Repeatability | ±0.0005° (±0.0087 mm/m) |
| Range | ±90° |
FlatMesh NanoMacro Sensor Node FM3NT-50
Physical Specifications
| Diameter | 86.7 mm |
| Height | 64.2 mm |
| Total Mass | 305 g |
| Housing Material | Polycarbonate and Aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP68 at 1 m for 24 hours IP69K |
| Mounting Options | Magnetic, screws, gluing, swivel mount or clamping |
| Operating Temperature Range | -40°C to +85°C |
Tilt Sensor Specifications
| Resolution | 0.0001° (0.00175 mm/m) |
| Repeatability | ±0.0005° (±0.0087 mm/m) |
| Repeatability (High G variant) | ±0.0025° (±0.0436 mm/m) |
| Range | ±90° |
