HDS Laser Scanners
Leica HDS laser scanning solutions are setting new standards for the way scanning work is done and are the most effective equipment for topographic, engineering, detail and as-built surveying.

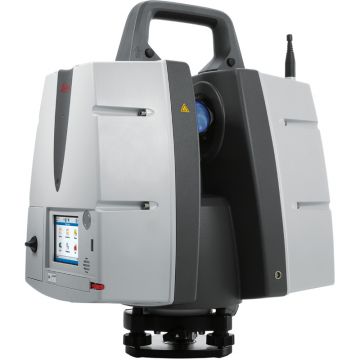

Within the Leica product family there is an extensive range of high speed and versatile scanners including the Leica ScanStation P30 and P40, the C10 and the Leica ScanStation P20 for powerful time of flight scanning as well as the HDS8810 mine scanning system. When these scanners are used with the impressive Leica Cyclone, Leica Truview and Leica CloudWorx software they produce accurate results quickly and efficiently from even large scan data sets.
| Leica ScanStation Comparison | ||||
 Leica ScanStation P50 |
 Leica ScanStation P40 |
Leica ScanStation P30 |
 Leica ScanStation P16 |
|
| DISTANCE MEASURMENT SYSTEM | ||||
| Maximum Range | > 1 km | 270 m | 120 m | 80 m |
| Maximum Scan Rate | 1 Mio Pts/sec | 1 Mio Pts/sec | 1 Mio Pts/sec | 1 Mio Pts/sec |
| Selectable Sensitivity Levels |  |
|
 |
|
| Resolution Settings | User Definable | User Definable | 0.8 mm to 50 mm at 10 m | 1.6 mm to 50 mm at 10 m |
| Laser Class | 1 | 1 | 1 | 1 |
| Duel Axis Compensator | |
|
|
|
| IMAGING SYSTEM | ||||
| Internal Camera | |
|
|
|
| HDR | |
|
|
|
| External Camera | |
|
|
|
| ENVIRONMENTAL | ||||
| Operating Temperature | -20°C to + 50°C | -20°C to + 50°C | -20°C to + 50°C | -20°C to + 50°C |
| Solid Particle / Liquid ingress protection | IP54 | IP54 | IP54 | IP54 |
| SURVEY / SETUP FUNCTIONALITY | ||||
| Quick Orientation | |
|
|
|
| Set azimuth | |
|
|
|
| Known backsight | |
|
|
|
| Resection | |
|
|
|
| Auto resection | |
|
|
|
| Traverse | |
|
|
|
| GENERAL FUNCTIONALITY | ||||
| Onboard target acquisition | |
|
|
|
| Check & Adjust | |
|
|
|
| One button scan control | |
|
|
|
| Scan area definition from video or scan | |
|
|
|
| Batch job scanning | |
|
|
|
At SCCS we provide High Definition Surveying Laser Scanners which offer countless cost and value benefits to many professional disciplines including CAD professionals, civil engineers, architects, forensic analysts, archaeologists, plant designers and other users of precise spatial information.
Below is a library of HDS instrument brochures, helpful instruction manuals along with tutorials and step by step guides. If you can't find the information or document you require please contact us on 01480 404888 or email our sales team sales@sccssurvey.co.uk for further help and guidence.
