Leica Rugby 600 Series
Fit, fast, tough levelling lasers.
The latest Leica Rugby 600 Series is fit, tough and fast. Rugby lasers are known for their toughness and suitability for all construction applications. Align, level and square quicker and faster than ever before, reducing costly downtime and errors.
Simplicity and reliability with a one button process on the Leica 610 ensures there are no mistakes on horizontal alignment tasks. Excellent and improved performance with the all new Leica Rod Eye receivers and with the Rod Eye 140 and 160 the working range is extended. The Leica Rugby 620 has an additional manual slope feature for matching existing grades and is perfect for concrete forming, framework levelling and pad placement proving foundations and footings work more efficiently. The more advanced Leica Rugby 640 multipurpose rotating laser is versatile and suited for levelling, squaring and aligning work both inside and outside. It includes the ‘scan 90’ feature so it may be positioned in 90° increments making it easy to quickly move the beam to the left or right side. Accurate and automatic plumb down direction over a reference point for alignment is simple to do. The semi-automatic Leica Rugby 670 and 680 grade lasers provide continued monitoring of the laser plane ensuring accurate performance throughout the day.
The new Leica Rugby 600 Series from Leica Geosystems expands the collection of interior and exterior laser levels with five new models. The new series of Leica Rugby rotating lasers brings outstanding quality and pricing for aligning and levelling construction, which can eliminate costly errors and avoid downtime and repeat work. Increasing efficiency and productivity when construction workers are aligning framework, levelling ceilings, setting-out walls or checking grades, can be achieved through a user friendly interface with straight forward operation.
This new series of laser uses long lasting rechargeable Lithium-Ion batteries which are very robust and provide over 40 hours of operation with each charge. The packs are also interchangeable throughout all of the Rugby 600 Series lasers.

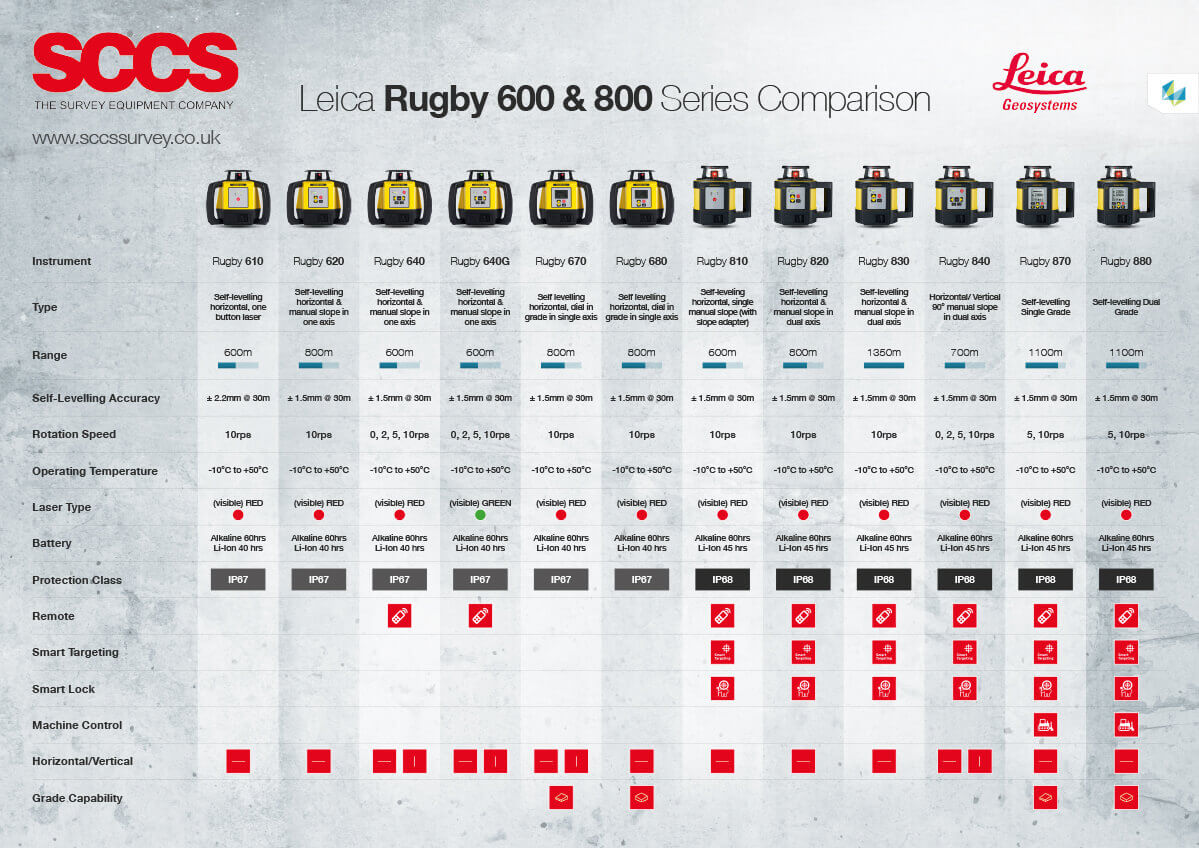

| Leica Rugby 600 Series Comparison Table | ||||||
 Rugby 610 |
 Rugby 620 |
 Rugby 640 |
 Rugby 640G |
 Rugby 670 |
 Rugby 680 |
|
| Type | Self-levelling horizontal, one button laser | Self-levelling horizontal & manual slope in one axis | Self-levelling horizontal & manual slope in one axis | Self-levelling horizontal & manual slope in one axis | Self levelling horizontal, dial in grade in single axis | Self levelling horizontal, dial in grade in single axis |
| Range | 600m |
800m |
600m |
600m |
800m |
800m |
| Self-Leveling Accuracy | ± 2.2mm at 30m | ± 1.5mm @ 30m | ± 1.5mm @ 30m | ± 1.5mm @ 30m | ± 1.5mm @ 30m | ± 1.5mm @ 30m |
| Rotation Speed | 10rps | 10rps | 0, 2, 5, 10rps | 0, 2, 5, 10rps | 10rps | 10rps |
| Operating Temperature | -10°C to +50°C | -10°C to +50°C | -10°C to +50°C | -10°C to +50°C | -10°C to +50°C | -10°C to +50°C |
| Laser Type | (visible) RED |
(visible) RED |
(visible) RED |
(visible) GREEN |
(visible) RED |
(visible) RED |
| Battery Unique Li-Ion, Run charge & Solar battery concept. |
Alkaline 60hrs Li-Ion 40 hrs |
Alkaline 60hrs Li-Ion 40 hrs |
Alkaline 60hrs Li-Ion 40 hrs |
Alkaline 60hrs Li-Ion 40 hrs |
Alkaline 60hrs Li-Ion 40 hrs |
Alkaline 60hrs Li-Ion 40 hrs |
| Protection Class Water & dust protection. |
IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Remote For easy one man operation. |
 |
|
||||
| One Button Simplicity Ease of use, reduces operator error. |
 |
|||||
| Always Automatic The Rugby 620 always starts up to automatic mode. Manual grade capable for simple slopes. |
 |
|
|
|
|
|
| Horizontal / Vertical For all concrete, layout, vertical applications. |
 |
|
 |
|
|
|
| Grade Capability With semi-automatic the Rugby checks level, then drives to the preset grade. |
Semi-Auto Single Grade |
Semi-Auto Dual Grade |
||||
