Laser Receivers
At SCCS we offer a range of Laser Detectors which provide complete solutions for construction and interior applications. The Leica Rod-Eye detectors including the new Rod Eye 140, 160 and 180 and are designed to work with the Leica Rugby family of lasers, especially the new Rugby 800 series. For a top of the range laser receiver we recommend the Rod Eye 180 which has integrated remote radio functionality, digital readout, is very accurate and includes strobe rejection.
All Leica Rod Eyes are built to a extremely high standard. Please browse through our range of Laser Detectors to find the right solution. If you require any advice please contact our experienced team on 01480 404888.
Leica Laser Reciever Comparison Information
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|

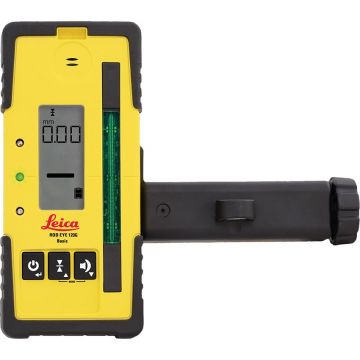

Rod Eye 120G Basic |

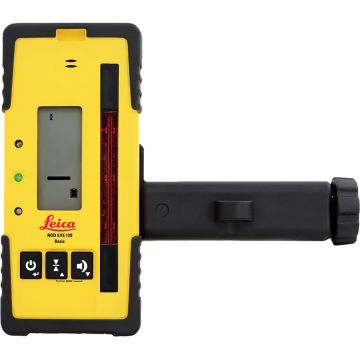

Rod Eye 120 Basic |
Rod Eye 140 Classic |

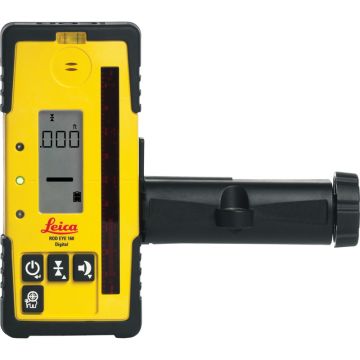

Rod Eye 160 Digital |
Rod Eye 180 Digital RF |
|
Anti-strobe |
No |
No |
Yes |
Yes |
Yes |
Smart Targeting / Smart Lock |
No |
No |
No |
No |
Yes |
Working diameter (laser dependent) |
400 m |
900 m |
1350 m |
1350 m |
1350 m |
Detection window |
70 mm |
70 mm |
120 mm |
120 mm |
120 mm |
Digital readout / height |
Yes / 70 mm |
No |
No |
Yes / 90 mm |
Yes / 90 mm |
Digital readout / units |
mm, cm, in, frac, ft |
mm, cm, in, frac, ft |
mm, cm, in, frac, ft |
||
Detectable spectrum |
500 nm to 570 nm |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm |
Automatic shutoff |
10 minutes |
10 minutes |
10 minutes |
10 minutes |
10 minutes |
Audio volumes |
High / Low / Off |
High / Low / Off |
High / Low / Off |
High / Low / Med / Off |
High / Low / Med / Off |
Arrow display |
11 channels |
9 channels |
9 channels |
15 channels |
15 channels |
Detection accuracies |
Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm |
Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm |
Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm |
Very Fine ± 0.5mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5mm |
Very Fine ± 0.5mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5mm |
Protection class (splash /dust proof) |
IP67 |
IP67 |
IP67 |
IP67 |
IP67 |
Battery type / life |
2x AA / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours |
Dimensions (HWD) |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
Operating temperature |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C |
