Line and Dot Lasers
The Leica Lino range of Point and Cross Line Lasers project points or lines with millimetre accuracy, on to surfaces making your work much easier. The Lino’s cleverly and accurately level themselves to compensate for any minor angular misalignment's to avoid errors. The projected lines are very bright and clear, using proven optics and Power Range Technology.
P5 |
L2 |
L2G |
L2P5 |
L2P5G |
LP41 |

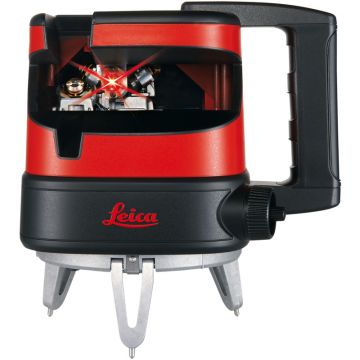

ML180 |
|
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
|
Level Horizontal Line |
 |
|
|
|
|
|
|
Plumb Vertical Line |
|
|
|
|
|
|
|
Lock in angle w/pendulum lock |
|
|
|
|
|
|
|
Plumbing: vertical transfer |
|
|
|
|
|
||
Set out right angles |
|
|
|
|
|
||
Horizontal line fan angle |
180° |
180° |
180° |
180° |
180° |
180° |
|
Green Laser |
|
|
The Leica Lino P3 and P5 interior lasers are easy to set up and use. Negate the need for string lines, plumb bobs and spirit levels, these two Lino’s provide a great solution for aligning jobs. These point lasers project multiple dots, either 3 or 5, in precise horizontal and vertical planes . Features include self-levelling ± 4°, one button for ease of use, and a robust housing which protects the laser from splashed water and dust.

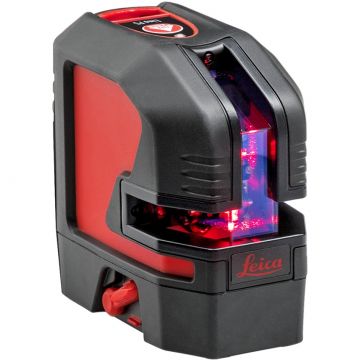

The Leica Lino L2 cross line laser provides industry leading robustness and design as well as very bright and clear vertical and horizontal lines. It also includes a large glass lens which increases visibility and length of the laser lines.

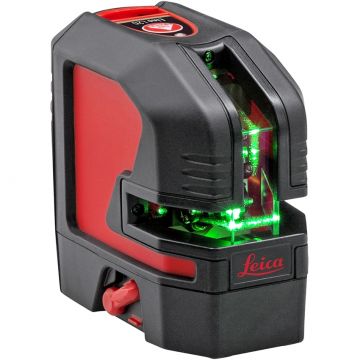

The Leica Lino L2P5 line and dot laser features 4 points as well as bright and clear vertical and horizontal lines making it the ultimate cross line and point laser. Setting out right angles is very simple and more accurate. Aligning walls or windows are made easy with the use of the four additional projected laser points.

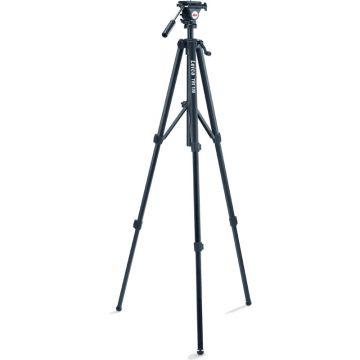

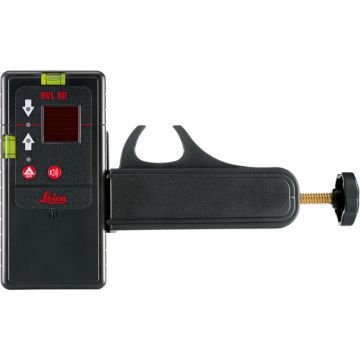

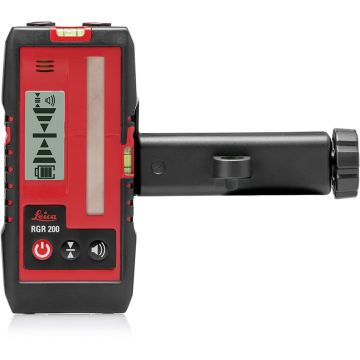

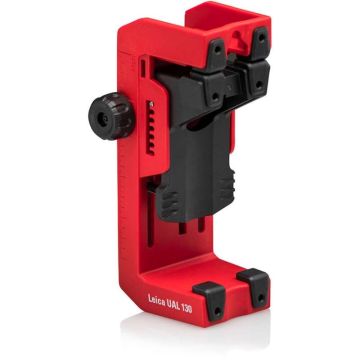

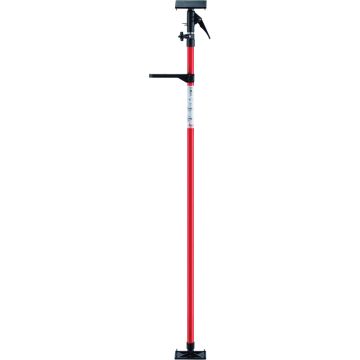

The adapter which is supplied with the P3 and P5 set the position of the laser very quickly. It allows for s for setup over profiles and edges and can even be attached to circular columns and iron pipes. Don’t miss out on accessories for the Point and Cross Line Lasers which include the TRI 100 Tripod, CLR290 Pole, Detector, Wall mount bracket or Battery charger.
Technical Data |
L2 |
L2G |
L2P5 |
L2P5G |
L4P1 |
P5 |
ML90 |
ML180 |
Range with detector |
80m |
80m |
80m |
80m |
80m |
100m |
100m |
|
Smart Targeting |
Yes |
|||||||
Levelling accuracy |
± 0.2mm/m |
± 0.2mm/m |
± 0.2mm/m |
± 0.2mm/m |
± 0.2mm/m |
± 0.2mm/m |
± 0.07mm/m |
± 0.07mm/m |
Self-levelling range |
± 4° |
± 4° |
± 4° |
± 4° |
± 4° |
± 4° |
± 5° |
± 5° |
# of laser dots |
4 |
4 |
1 |
5 |
1 |
1 |
||
# of laser lines |
2 |
2 |
2 |
2 |
4 |
3 |
4 |
|
Beam direction |
Vertical, horizontal |
Vertical, horizontal |
Vertical, horizontal, up, down, left, right |
Vertical, horizontal, up , down, left, right |
3 vertical, 1 horizontal, 1 plumb down |
up, down, forward, left, right |
Vertical forward + right, horizontal plumb down |
Vertical forward + right = left, horizontal plumb down |
Dot accuracy |
± 0.2 mm/m |
± 0.2 mm/m |
± 0.2 mm/m |
± 0.2 mm/m |
± 0.1 mm/m |
± 0.1 mm/m |
||
Line accuracy |
± 0.3 mm/m |
± 0.3 mm/m |
± 0.3 mm/m |
± 0.3 mm/m |
± 0.2 mm/m |
± 0.7 mm/m |
± 0.7 mm/m |
|
Battery type |
Starter Kit - AA 3 x 1.5v Professional - Li-Ion rechargeable |
Li-Ion rechargeable (or AA 3 x 1.5v) |
Li-Ion rechargeable (or AA 3 x 1.5v) |
Li-Ion rechargeable (or AA 3 x 1.5v) |
Li-Ion rechargeable (or AA 3 x 1.5v) |
AA 3 x 1.5v |
NiMH rechargeable (or D 2 x 1.5V) |
NiMH rechargeable (or D 2 x 1.5V) |
Operating time |
Starter Kit - Up to 13h (AA) Professional - up to 44h (Li-Ion) |
Up to 28h (Li-Ion) |
Up to 44h (Li-Ion) |
Up to 28h (Li-Ion) |
Up to 24h (Li-Ion) |
Up to 28h (AA) |
Up to 15h (NiMH) |
Up to 15h (NiMH) |
Protection class |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
Dimensions |
110 x 60 x 100mm |
110 x 60 x 100mm |
110 x 60 x 100mm |
110 x 60 x 100mm |
147 x 147 x 181mm |
110 x 60 x 100mm |
250 x 159 x 230mm |
250 x 159 x 230mm |
