Creating a new NRTK profile
Creating-a-new-NRTK-profile.pdf
![Leica Rugby Battery](/tutorials/media/nrtk1.jpg)
1
Instrument
If the Handheld Controller/logger isn't already connected to the GS sensor. Kindly follow the steps to connect. If it is skip step
![Leica Rugby Battery](/tutorials/media/nrtk2.jpg)
2

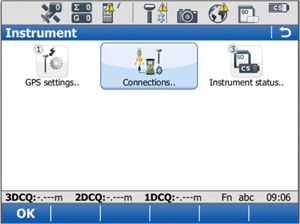

Connections...
![Leica Rugby Battery](/tutorials/media/nrtk3.jpg)
3

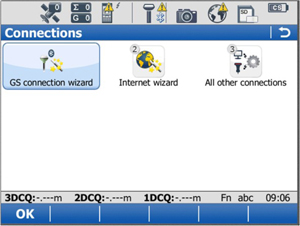

GS connection wizard
![Leica Rugby Battery](/tutorials/media/nrtk4.jpg)
4

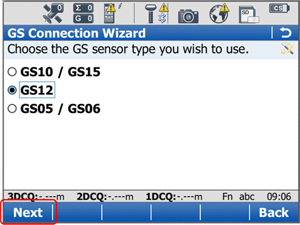

Select particular GS Sensor being used. F1-Next
![Leica Rugby Battery](/tutorials/media/nrtk5.jpg)
5

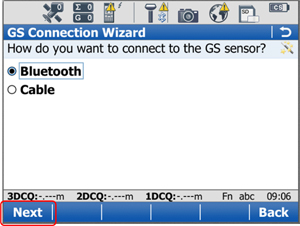

Bluetooth. F1-Next
![Leica Rugby Battery](/tutorials/media/nrtk6.jpg)
6

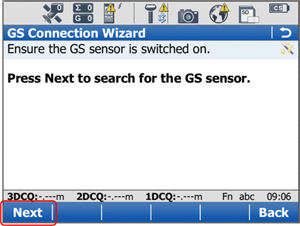

F1-Next to search for the antenna
![Leica Rugby Battery](/tutorials/media/nrtk7.jpg)
7

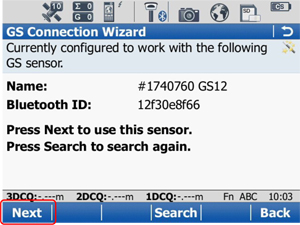

F1-Next
F4-Search if device not found
![Leica Rugby Battery](/tutorials/media/nrtk8.jpg)
8

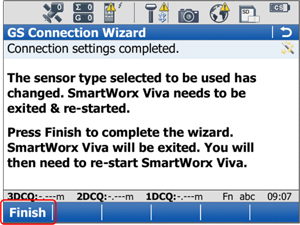

F1-Finish
Restart Leica Viva SmartWorx from the desktop.
![Leica Rugby Battery](/tutorials/media/nrtk9.jpg)
9

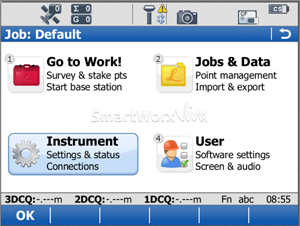

Instrument
![Leica Rugby Battery](/tutorials/media/nrtk10.jpg)
10

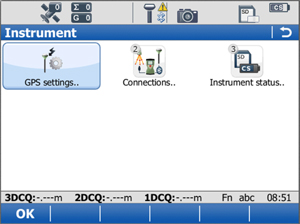

GPS settings...
![Leica Rugby Battery](/tutorials/media/nrtk11.jpg)
11

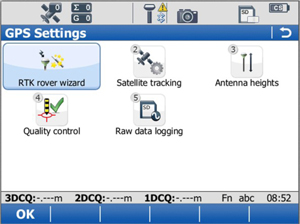

RTK rover wizard
![Leica Rugby Battery](/tutorials/media/nrtk12.jpg)
12

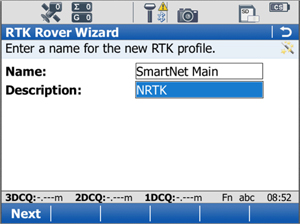

“SmartNet Main” “SmartNet Backup”. SmartNet is a Network Real-Time Kinematic service
![Leica Rugby Battery](/tutorials/media/nrtk13.jpg)
13

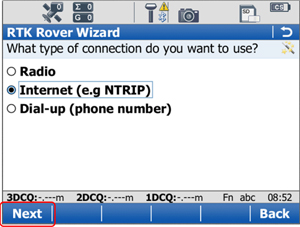

Internet
![Creating a new NRTK profile](/tutorials/media/nrtk14.jpg)
14

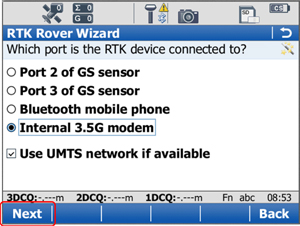

Internal 3.5G modem
Use UMTS network if available
![Creating a new NRTK profile](/tutorials/media/nrtk15.jpg)

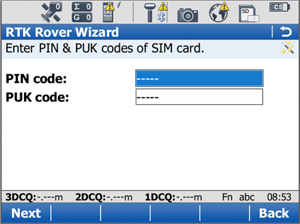

15
- - - - -
- - - - -
![Creating a new NRTK profile](/tutorials/media/nrtk16.jpg)
16

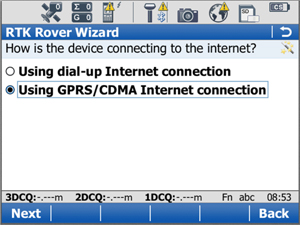

Using GPRS/CDMA Internet connection
![Creating a new NRTK profile](/tutorials/media/nrtk17.jpg)
17

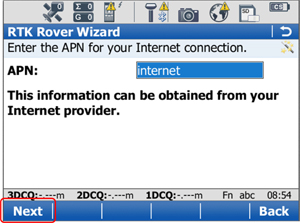

APN’s:
vodafone: internet
O2: mobile.o2.co.uk
Orange: orangeinternet
T-Mobile: general.t-mobile.uk
BT Mobile: btmobile.bt.com
![Creating a new NRTK profile](/tutorials/media/nrtk18.jpg)
18

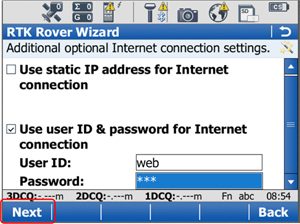

Network User ID & Password
vodafone: web / web
O2: faster / password
Orange: blank / blank
T-Mobile: user / wap BT Mobile: bt / bt
![Creating a new NRTK profile](/tutorials/media/nrtk19.jpg)
19

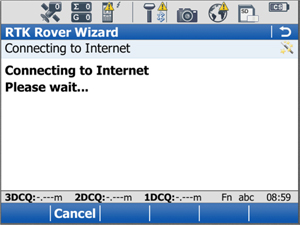

Either wait for it to test the internet connection, or cancel until the ‘RTK rover wizard’ is complete
![Creating a new NRTK profile](/tutorials/media/nrtk20.jpg)
20

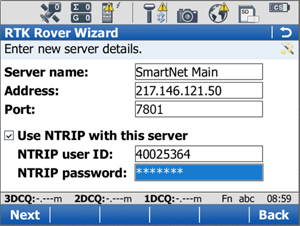

SmartNet Main 217.146.121.50 7801
SmartNet BackUp 213.120.255.90 7801
![Creating a new NRTK profile](/tutorials/media/nrtk21.jpg)
21

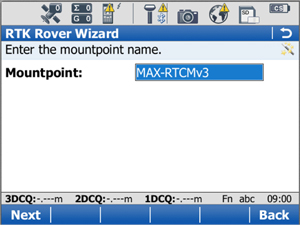

Enter mountpoint manually
![Creating a new NRTK profile](/tutorials/media/nrtk22.jpg)
22
MAX-RTCMv3
i-Max can be used when the internet
signal is poor. Change the
‘Network type to i-MAX too.
I-MAX-RTCMv3
![Creating a new NRTK profile](/tutorials/media/nrtk23.jpg)
23

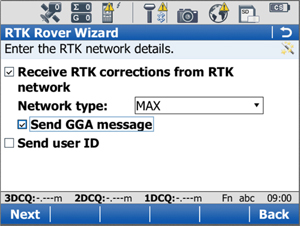

Receive RTK corrections from RTK
Network type: MAX
Send GGA message
![Creating a new NRTK profile](/tutorials/media/nrtk24.jpg)
24

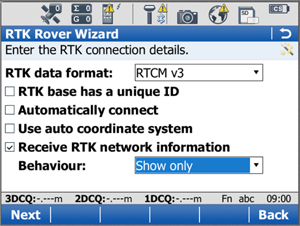

RTK data format: RTCM v3
Behaviour: “Show only”
