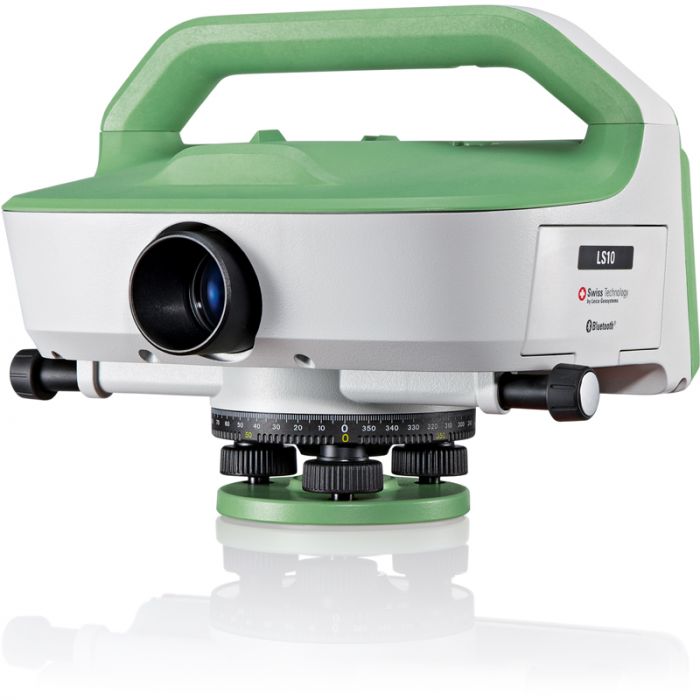

Leica LS10 Digital Level
Leica LS10 Digital Level
- We offer FREE delivery throughout the UK on all orders over £200.
- We dispatch orders Monday to Friday (excluding UK public holidays).
- We usually dispatch orders for stock items the next working day
if we receive your order before 12 noon.
SCCS partners with finance companies to offer alternatives to traditional equipment purchases, such as finance leasing, contract hire, and hire purchase.
We will work with you and your chosen finance partner to ensure a smooth transaction, so you can start using your new equipment quickly.
If you require further information or a referral to a leasing partner of choice, please do get in touch with us on 01480 404888 or email us at sales@sccssurvey.co.uk
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
More comfort with exceptionally reliable results
Complicated infrastructure demands the uppermost accuracy when defining and setting out reference heights. With dedication in striving forward, Leica Geosystems have produced the Leica LS10 & LS15 Digital Levels to provide an enjoyable field experience. From measuring roads, railways, bridges or other structures, the Leica LS Digital Levels provide reassurance and ease to an extensive range of complicated levelling applications.
The Leica LS15 achieves all project steps, simplifying demanding tasks associated with the levelling process. 0.2 mm accuracy is accomplished by aiming at the target with the use of the colour touch display and pressing the measuring control. Features such as an electronic bubble, autofocus and tilt checks prior to each measurement help to reduce measuring professionals’ fatigue over a day’s work, reducing the risk of human-based errors.
Faster staff sighting
The Leica LS15 Digital Level is the only one on the market which is equipped with a camera and enables target staffs to be sighted quicker. Operators need to simply locate the staff on the cameras touch screen display and press the measuring button which automatically records the staff reading and measurement data.
Precise hardware
Automated functions and industry-leading 0.2 mm accuracy to standard Invar staffs deliver unmatched reliability. Precision begins by using the electronic level bubble to set up instruments. After one button press, automatic tilt checks are made prior to each measurement. Integrated autofocus not only finds your target faster, it increases measurement accuracy by maximising contrast of the staff.
Infinitely bridging field to office
The field experience of Leica LS digital levels does not finish in the field. After easily transferring your data to the office via a USB or Bluetooth®, Leica Infinity processes your results hassle-free back in the office. This intuitive software enables easy-tounderstand displays of complex levelling data. Combine tables with graphics or even cross check project data in one window for one overall view of level lines, line calculations or adjustments.
Highest Accuracy
- 0.2 mm accuracy even with standard Invar staffs
- Electronic level bubble for perfect instrument setup
- Tilt check prior to each measurement
- Autofocus for maximal contrast of staff
Efficiency of Work
- Digital camera enables fast and accurate staff sighting
- Streamline levelling processes with just one push of a button
- Fast and easy data transfer using USB and Bluetooth® connectivity
Field Experience
- Visualisation of level lines in the field and in the office
- Screenshots document site and field results
- Step-by-step display guidance for levelling line flows
| Leica LS10 & LS15 Digital Levels | ||
|
Leica LS10
|
Leica LS15
|
|
| Height Accuracy using standard Invar staff |
0.3 mm
|
0.2 mm, 0.3 mm
|
| Height Accuracy using standard staff |
1.0 mm
|
1.0 mm
|
| Distance Accuracy |
15 mm at 30 m
|
15 mm at 30 m
|
| Measurement Minimum Range |
1.8 m
|
1.8 m
|
| Measurement Maximum Range |
110 m
|
110 m
|
| Measurement Time |
Typically 2.5 sec
|
Typically 2.5 sec
|
| Autofocus working range |
1.8 m to infinity
|
|
| Autofocus time to focus |
Typically 4 sec
|
|
| Camera field of view |
6° x 4.8° (7.7° diagonal)
|
|
| Camera frame rate |
Up to 20 frames per second
|
|
| Camera focus |
3 m to infinity
|
|
| Digital Compass Accuracy |
3 gon / 2.7°
|
|
| Compensator working range |
± 10‘
|
± 10‘
|
| Compensator Accuracy | ||
| Compensator Magnetic field sensitivity |
≤ 1"
|
≤ 1"
|
| RS232 / USB |
Yes
|
|
| Bluetooth® |
Yes
|
Yes
|
| Mini USB |
Yes
|
Yes
|
| Internal memory |
30,000 measurements
|
30,000 measurements
|
| USB stick |
Yes
|
Yes
|
| Display |
3.6 inches, QVGA, colour, touch
|
3.6 inches, QVGA, colour, touch
|
| Telescope magnification |
32x
|
32x
|
| Minimum focusing distance |
0.6 m
|
0.6 m
|
| Electronic level bubble |
Working range 0.07 gon / 0.063°
Accuracy6 0.015 gon / 0.013° |
|
| Weight (including battery) |
3.7kg
|
3.9kg
|
| Internal battery / operating time |
Exchangeable Lithium-Ion / 12 h
|
Exchangeable Lithium-Ion / 12 h
|
| External power |
12.8 V DC (10.5-18 V)
|
|
| Working temperature range |
-20 °C to +50 °C
|
-20 °C to +50 °C
|
| Dust / Water (IEC 60529) |
IP55
|
IP55
|
| Humidity |
95%, non-condensing
|
95%, non-condensing
|
| SKU | 804550 |
|---|---|
| MPN | 804550 |
| Brand | Leica Geosystems |
