Interior Lasers
Our range of Interior Laser Levels include those specifically created for indorr situations and laser pointers which will project lines or points to millimetre accuracy on surfaces. This increases productivity by leaving the workers hands free to get on with the task. To enhance each of the instruments effectiveness we also supply a selection of accessories.
We also supply a range of Leica Roteo rotating lasers which are easy to use and intuitive. Each Roteo laser level includes different functionality but suited for interior construction. Being hands free the Roteo helps provide freedom when suspending ceilings and erecting walls. Marking out and right angles is simple with the use of a vertical 360° reference plane and plumb which is more accurate and efficient.
The Leica Roteo range of rotating lasers can perform many functions where aligning or levelling is needed. They produce results from walls, ceilings, floors or tripods from both interior and exterior locations.
Interior Laser Levels Comparison Table
|
Leica Roteo - 35
|
Leica Roteo - 35G
|
Leica Roteo - 20HV
|
|
| Distance |

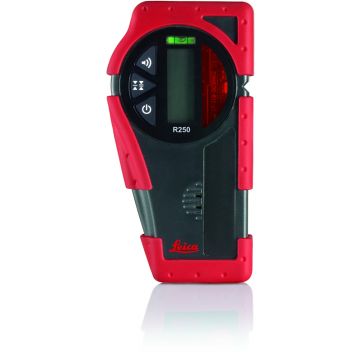

With the laser receiver - up to 150m radius
|
||
| Self levelling laser - Auto |
vertical and horizontal
|
||
| Self levelling distance |
± 4.5°
|
||
| Self levelling accuracy |
±3mm at 30m
|
||
| Scanning angle |
between 2° and 36°
|
||
| Rotation speed |
0, 150, 300, 450, 600 rpm
|
||
| Braket - Wall mounted |
motorised
|
motorised
|
motorised
|
| Weight including batteries |
1.7kilograms
|
||
| Dimensions (Height x Width x Depth) |
189 x 208 x 136mm not including the wall mount bracket
|
||
| Type of battery |
rechargeable battery pack (NiMH) or alkaline D cells, 2 x 1.5V
|
alkaline D cells, 2 x 1.5V
|
|
| Life of battery |
50hrs with rechargeable or up to 160hrs with alkaline batteries.
|
25hrs with rechargeable or up to 40hrs with alkaline batteries
|
up to 160hrs with alkaline batteries
|
